Ice resurfacing machine for small ice surfaces – Compact by WM technics
Menu
Blue vehicle with side brushes, black seat and “compact” logo on the side. Blue vehicle with side brushes, black seat and “compact” logo on the side.
Go to next section

The compact ice resurfacer from WM for small rinks and surfaces of up to 1,200 m² / 12,900 ft².

Compact is the compact professional ice resurfacer for large and small mobile rinks. While the powerful diesel engine is suitable for outdoor use, the electric model with its emission-free AC motor is ideal for indoor use.

The robust Compact resurfacer planes the ice as well as a large professional machine, is easy to use, highly maneuverable and offers maximum driver comfort. The Compact guarantees professional ice resurfacing on smaller areas and thus outstanding ice quality for mobile rinks.

Get more info
Snow tank volume

1.8 m³ / compacted 2.25 m³
63.6 ft³ / compacted 79.5 ft³

Water tank volume

600 l
158 gal

Blade width

1,700 mm
66 7/8 in

Fields of operation

Event / Small ice rinks


360° view

Drag to change the 360 view angle

Drag to view


Highlights

The standout advantages of the Compact at a glance: Discover why the Compact is the perfect ice resurfacing machine for larger mobile rinks.

Efficient ice resurfacing

Compact may be small, but it planes the ice like a large-scale pro!

Learn more

Ice maintenance machine on ice hockey rink.

Ease of use

Compact is easy to use, highly maneuverable and offers maximum driver comfort. Emptying the coated snow bin is also very easy.

Learn more

Blue cockpit with black seat, steering wheel and various controls.

Maintenance

The engine compartment is easily accessible, with no dismantling required. Maintenance is thus quick and inexpensive.

Learn more

Blue car with exposed steering wheel, seat and engine

Features

Discover the standard equipment of the Compact as well as the wide range of optional features. We’re happy to accommodate your individual requests to suit your needs perfectly.

Lithium
https://www.wm-technics.com/wp-content/uploads/2024/09/compact-electric-1600x1000-1.webp
Motor

Motor

Drive power

15 kW

AC motor controller

AC Curtis

Idle revolutions

900 rpm

Drive revolutions

1,900 rpm

Transmission

Continuously adjustable hydraulic four-wheel drive

Speed

0 – 12 km/h
0 – 7 mph

Snow tank

1.7 m³ / compacted 2.1 m³
60.0 ft³ / compacted 74.0 ft³

Water tank

600 l (stainless steel)
158 gal

Tyres

175 / 70 R 14C
2 rows of spikes

Diesel
https://www.wm-technics.com/wp-content/uploads/2024/09/compact-diesel-1600x1000-1.webp
Engine

Kohler KDW 1404, 4 cylinders 1,372 cm³ 83.7 in³

Power

25.60 HP (18.80 kW) at 2,700 rpm

Torque

66.50 Nm – 2,000 rpm

Operating torque

2,600 rpm

Fuel tank

27 liters diesel
7 gal

Drive

Continuously adjustable hydraulic four-wheel drive

Speed

0 – 12 km/h
0 – 7 mph

Snow tank

1.8 m³ / compacted 2.25 m³
63.6 ft³ / compacted 79.5 ft³

Water tank

600 l (stainless steel) 158 gal

Weight

1,650 kg 3,638 lbs

Tyres

175 / 70 R 14C
2 rows of spikes

Included in delivery

Due barre di legno con fori e viti, disposte una sopra l'altra.

2 blades in transport sheath

Due asciugamani grigi ripiegati su sfondo bianco

2 towels

Due tappetini neri in gomma su sfondo bianco.

2 rubber mats

Barra metallica con due estremità a T, una nera e una argentata.

6-mm hexagon socket T wrench

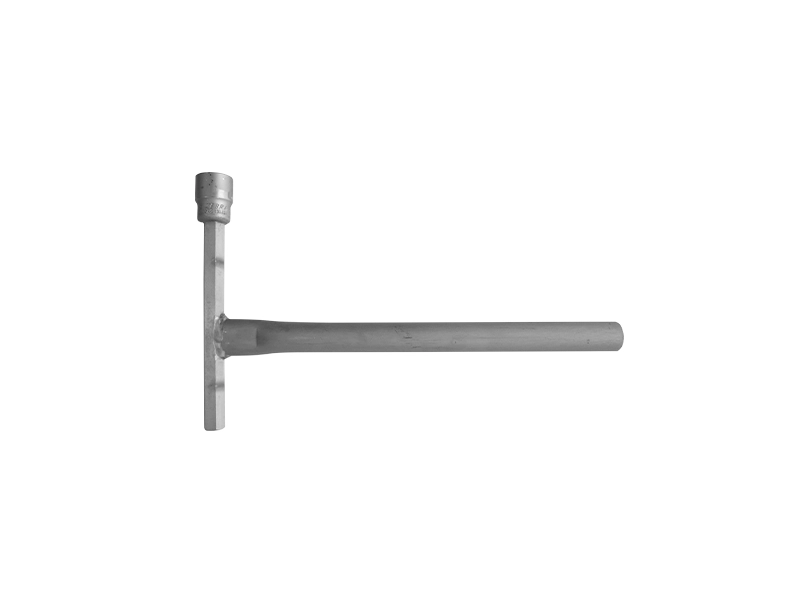

Multi-purpose key

Set di chiavi esagonali da 4 a 10 mm con etichette rosse.

Set hexagonal socket screws

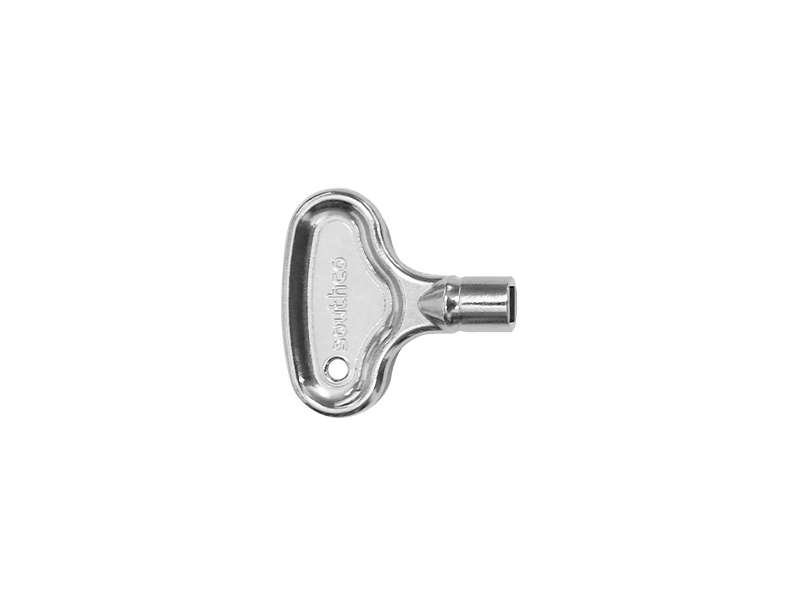

Bodywork key

Due guanti grigi con bordo nero su sfondo bianco.

Laceration-proof safety gloves

Blocco di spugna bianca con bordo marrone su sfondo bianco.

Grindstone

Componente metallico con foro centrale, vista dall'alto.

Storz coupling D ø 25

Cinque fusibili di colore rosso, arancione, verde, blu e bianco su sfondo bianco.

Fuse set

Due manuali tecnici aperti, uno con illustrazioni tecniche e l'altro con istruzioni dettagliate.

Instruction manual

Diagramma di un veicolo industriale smontato in 10 parti su sfondo bianco.

Online spare parts catalogue

Link WORKspace


Optional

The Compact offers numerous configuration options: With a wide range of accessories, you can customize your machine to perfectly meet your specific needs.

Parti di un macchinario con tubazioni e cinghie metalliche.
Suction manifold

Dettaglio di un veicolo industriale blu con un'asta di metallo e un pneumatico.
Screw conveyor wash system vertical

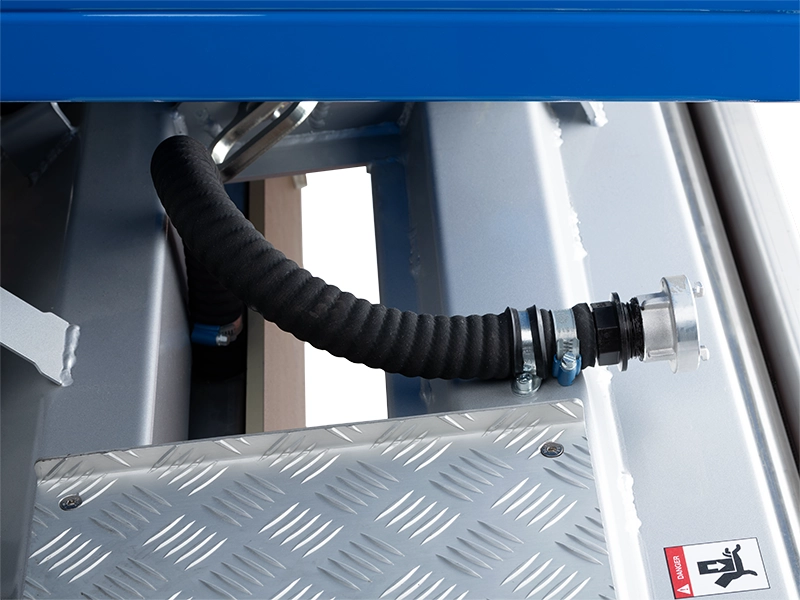

Screw conveyor wash system horizontal

Specchio laterale con bordo blu su supporto metallico.
Side mirror front left
Specchio laterale con bordo blu su supporto metallico.
Side mirror front right

Sedile con riscaldamento di un veicolo industriale blu.
Driver’s seat with heated seat
Contenitore bianco con timer e due interruttori su sfondo bianco
Acquastop valve with time relay

Dettaglio di un faro posteriore di un veicolo industriale con luce accesa.
Front headlights

Spazzatrice verde con spazzole laterali, volante e sedile nero.
Custom color body
Pavimento in pavimentazione grigia con spazzaneve elettrico azzurro e rosso.
Wrapping

Carrello elevatore manuale con ruote rosse e maniglia nera.
Battery trolley
Pneumatico da fuoristrada con cerchio argentato su sfondo bianco.
Spare tyre 14”
Chiave a croce a croce con un dado, entrambi in metallo.
Cross-key
Sollevatore idraulico blu con etichetta e barra metallica su sfondo bianco.
Lifting jack with bar

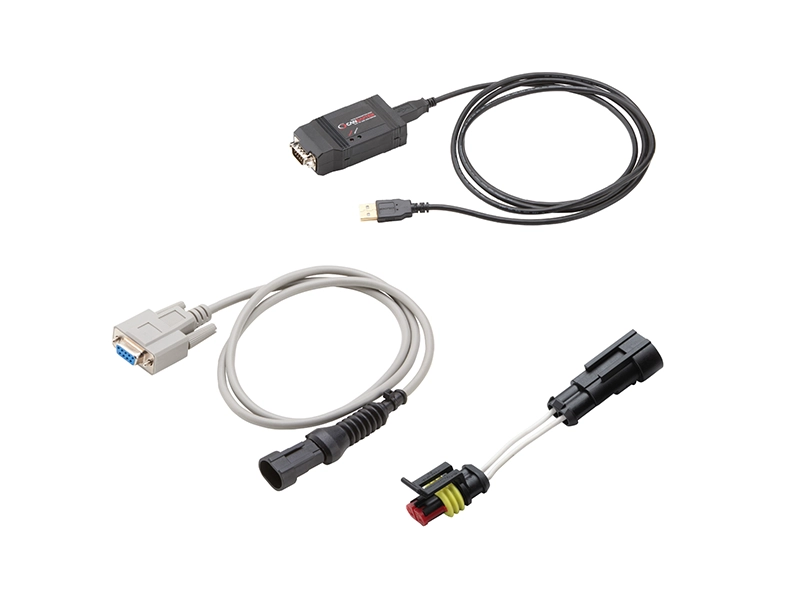

Diagnostic cable

Macchina per la lucidatura di pavimenti con struttura blu e grigia, logo WM.
Groove harrow

Lama di ricambio per sega circolare con 2 fori di fissaggio.
Blade
Quattro fogli di tessuto nero ripiegati su se stessi.
Towel felt
Asciugamano nero piegato su sfondo bianco.
Towel terry

Where they choose Compact

Centrum Aktywności Frajda w Kostrzynie Logo
Centrum Aktywności Frajda w Kostrzynie

Poland

Jesenicka Sportoviste Logo
Jesenicka Sportoviste

Czech Republic

Riptide Logo
Riptide

Italy

Spruce Peak Logo
Spruce Peak

United States

Züko Logo
Züko

Switzerland

AST Logo
AST

Austria

SEE-INFRA AG Logo
SEE-INFRA AG

Switzerland

Parc Jean Drapeau Logo
Parc Jean Drapeau

Canada

Marcel Krenn

“People love our ice rinks! This is due to their perfect ice quality, made possible by Compact, a small, agile ice resurfacer that performs like its big brothers.”

Marcel Krenn - Technician
AST Eis- und Solartechnik GmbH (Austria)

Downloads

Catalogue Compact

2.88 MB

Other ice resurfacers

Electric snow blower with seat, brushes and Pinguìno logo on a black background.

Pinguino

The mini-revolution in ice resurfacing: with its compact size and agility, the Pinguino delivers perfect ice conditions for events and mobile rinks with surfaces up to 800 m² / 8,600 ft².

Explore

Snip

The electric, hand-guided ice edger that makes ice maintenance easier – perfect for both mobile rinks and large arenas.

Explore
