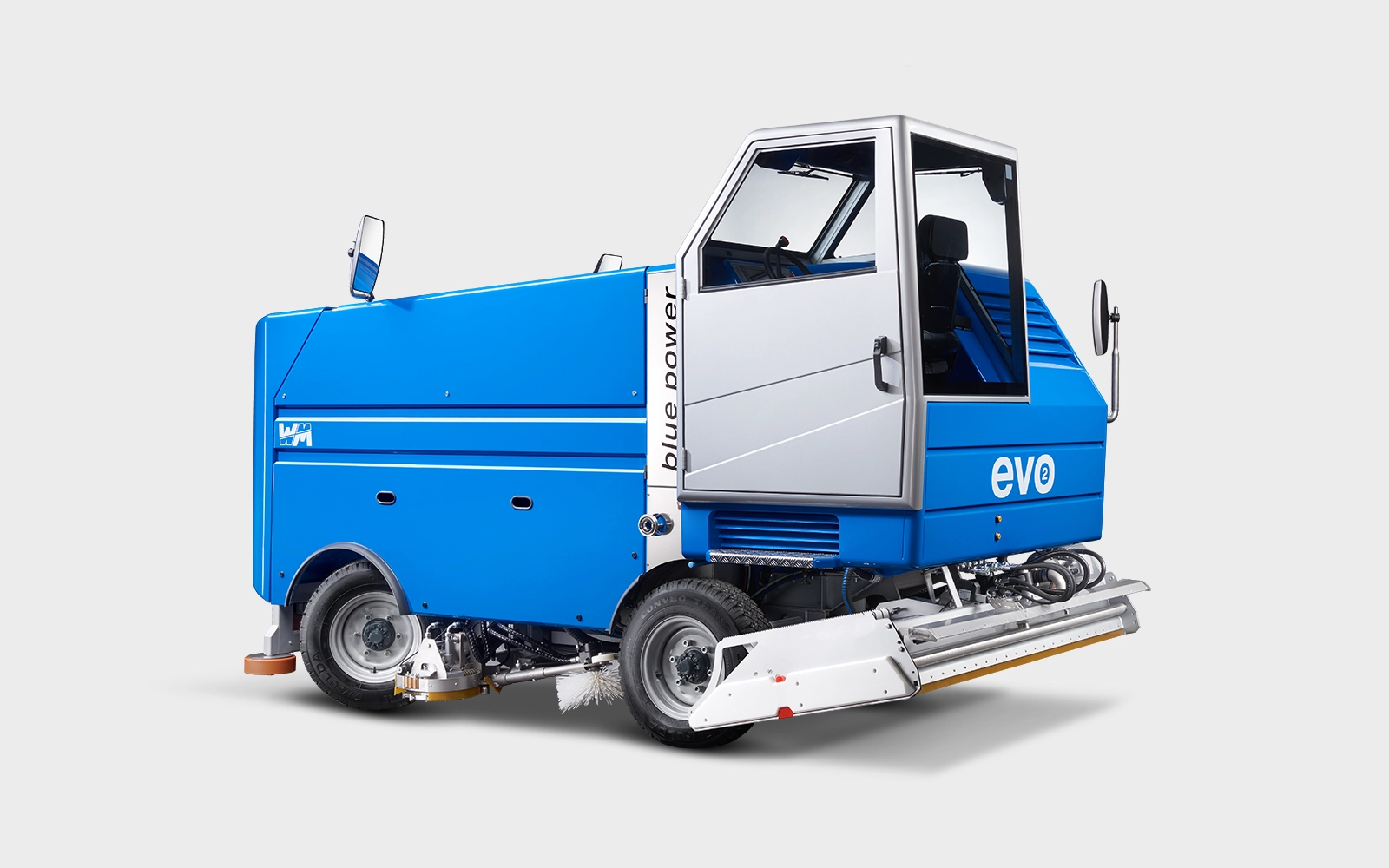

evo²

In the sledge, located behind the planing blade, is the ice washing system. Nozzles spray clean water onto the freshly planed ice surface, washing away snow remnants, hair, skin particles, sand, or dust from the ice grooves. A rubber lip collects the dirty water at the end of the sled, and a suction pump draws it through the suction ledge positioned in front of the rubber lip and transports it to the snow tank.

For outdoor rinks, in case of rain, the suction pump can be used to remove rainwater from the ice surface through the suction ledge. It’s essential to ensure there is a sufficient amount of rainwater to avoid damaging the pump.

The ice washing system can maintain lightly used ice surfaces without requiring additional water. This allows the ice surface to be used immediately and reduces energy consumption for cooling.

Advantage
Perfectly clean ice is guaranteed. Any damage to the ice is cleared of snow remnants and dirt using water nozzles. The dirty water is suctioned from the ice surface with the suction ledge. Once the ice surface is clean, you can rebuild the ice with the towel or ICEplus. This results in more transparent ice, making advertising inserts more visible. Additionally, the faster bonding process of the new ice layer helps save energy.

The screw conveyor wash system is supplied with water from the machine’s central water source. Water is sprayed along the entire length of the screw channel, thoroughly cleaning the screw conveyor from end to end. This wash system can be activated independently during operation, whether the machine is moving or stationary, with the sledge raised or lowered, and regardless of whether the screw conveyors are rotating or not.

Advantage
If the screw conveyors start to clog, you can clean them effortlessly with the push of a button on the dashboard. There’s no need to stop—the ice resurfacing continues seamlessly. This function is available at any time, whether you’re on the ice or in the garage.

The screw conveyor wash system is supplied with water from the machine’s central water source. Water is sprayed along the entire length of the screw channel, thoroughly cleaning the screw conveyor from end to end. This wash system can be activated independently during operation, whether the machine is moving or stationary, with the sledge raised or lowered, and regardless of whether the screw conveyors are rotating or not.

Advantage
If the screw conveyors start to clog, you can clean them effortlessly with the push of a button on the dashboard. There’s no need to stop—the ice resurfacing continues seamlessly. This function is available at any time, whether you’re on the ice or in the garage.

The vehicle’s central water supply routes water to the snow tank wash system. Water pipes attached to the three outer sides of the snow tank spray the outer walls at the press of a button and wash away all residual snow.

Advantage
Snow is cleared from the driver’s cab to ensure it is kept clean and in good condition. In particularly stubborn conditions, such as extreme calcification or cold, the wash system helps to remove all snow from the tank.

The wheel wash system is supplied with water from the machine’s central water supply. Steering spray elements clean the two front wheels, while the spray elements for the rear wheels are mounted on the sledge.

Special feature: The wash position is located close to the ground, where the tires pick up the most dirt. This means the dirt is washed off before it can contaminate the machine. Clean tires help keep the ice surface at the entrance spotless.

A cleaner ice surface reduces wear on the planing blades, extending their lifespan.

Advantage
Clean ice benefits not only the athletes but also extends the life of the planing blades, saving on costs. Activating the steering wheel wash system before entering the ice efficiently protects the surface from contamination.

Classic ice resurfacing: Water is distributed across the ice using a terry or felt wiping towel. We recommend using a terry towel when the water temperature exceeds 25 °C (77 °F) and felt at lower temperatures.

The classic ice resurfacing method with enhanced towel protection: The towel only touches the ice surface during water application and is lifted at all other times. This prevents freezing while the machine is stationary and keeps the towel clean from ground contact. As a result, the towel stays in better condition and lasts longer.

Advantage
Efficient water distribution is maintained over extended periods. At the start of resurfacing, you drive the first few meters without using the towel, only lowering it onto the snow-free surface. This keeps the towel free of snow, ensures even water application, and immediately optimizes the ice quality. When the ice resurfacer stops, the towel automatically lifts, preventing it from freezing to the surface.

The ICEplus system operates without a towel: Water is sprayed directly onto the ice surface via nozzles. The water freezes faster, filling in deep grooves more effectively, and the transitions between planing paths are smooth. Using low-pressure technology minimizes spray mist, while flaps on the sides of the sledge prevent water droplets from reaching the already resurfaced lane.

Advantage
A brilliant, mirror-smooth ice surface! The innovative nozzle system applies water without a towel, ensuring it settles better in deep grooves.
The low-pressure system minimizes spray mist, preventing increased humidity inside the ice rink. The already resurfaced lane remains unaffected by stray water droplets. The faster drying time also enhances energy efficiency.

Water spraying system with automatic towel lifter

Combining an automatic towel and nozzle system gives you maximum flexibility in ice resurfacing. All components are securely mounted on the sledge, allowing you to choose between using the nozzle or the towel for resurfacing at any time.

The water sprayer features a high-performance pump integrated into the machine and a rear-mounted spray nozzle. It distributes a large volume of water evenly across the ice in no time. Controlled effortlessly from the driver’s station, both the water flow and spray range can be continuously adjusted via a dial while on the move.

With a newly designed spray nozzle and optimized droplet shape, the system ensures water is applied in large droplets with minimal air bubbles, making ice building and leveling a breeze. After use, the spray nozzle can be easily detached and stored with just one hand.

Advantage
Our motto: “No steps on the ice.” The water sprayer allows you to build the ice comfortably and safely from the machine, leaving wet feet in the past.

Pro-tip for flawless ice: Use the water sprayer 3 to 4 times a week after the final resurfacing in the evening for perfectly smooth ice.

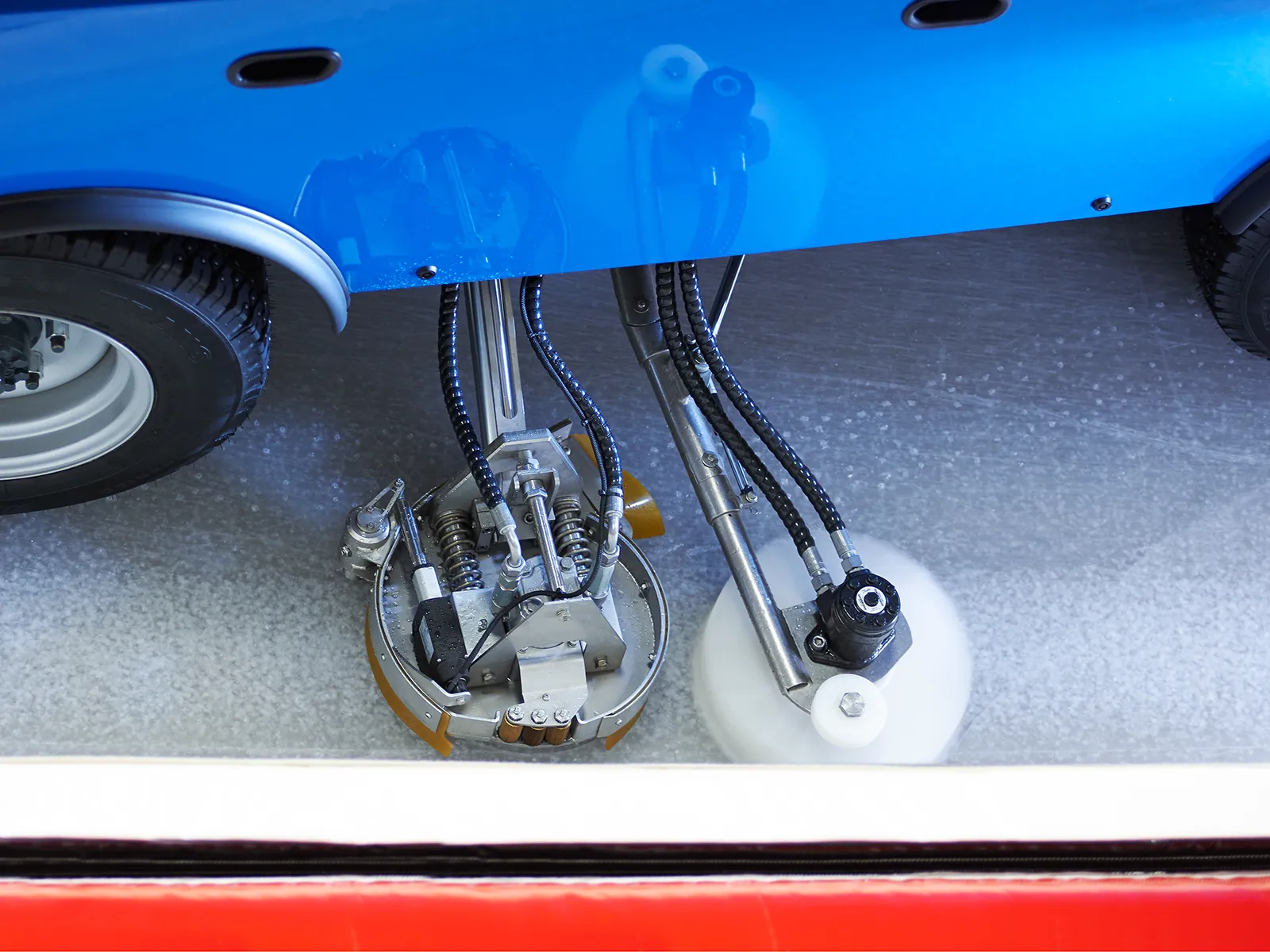

The edger is mounted on an independent arm attached to the machine frame, separate from the brush. It has a diameter of 35 cm (13 3/4 inches), is equipped with 12 reversible blades, and is made from stainless steel. Controlled from the driver’s station, the edger is extended and retracted. The cutting depth is continuously adjustable using a dial. With its 3 guide rollers and 5 cm (2 inches) of spring travel, the edger adapts perfectly to the contour of the boards, leaving a clean, 35 cm (13 3/4 inches) wide strip where the sled runner follows. The WM edger is a standout feature known for its robust and durable construction.

Advantage
Our motto: “No steps on the ice.” The ice near the boards can be prepared quickly, comfortably, and safely for the next championship game, keeping your feet dry. The cutting depth can be adjusted from the driver’s station (up to -6 mm or -1/4 inch). The edger can easily shave ice bumps on the rink.
After use, the edger is retracted.
Both the brush and edger can be used separately or simultaneously.

The brush is mounted on an arm made entirely of stainless steel. It is hydraulically extended, retracted, and powered. An additional joint, combined with gas pressure springs and a board guide, ensures the brush follows the boards with precision and optimal pressure, even at high speeds. The highly robust brush arm is designed to withstand impacts, even when passing through open board gates at full speed. For quick and easy maintenance, the stainless steel brush head can be removed and replaced by loosening just one screw.

Advantage
Open board gates? No problem! The gas-sprung brush arm reacts dynamically and is break-resistant, efficiently handling all challenges.

The extra-large reflective side mirrors can be optionally heated to prevent fogging. A right rear mirror comes standard, while additional mirrors can be added to the front left and right.

Advantage
Optimal visibility of the sledge is ensured. We recommend adding front-side mirrors for extra safety when navigating narrow passages.

The extra-large reflective side mirrors can be optionally heated to prevent fogging. A right rear mirror comes standard, while additional mirrors can be added to the front left and right.

Advantage
Optimal visibility of the sledge is ensured. We recommend adding front-side mirrors for extra safety when navigating narrow passages.

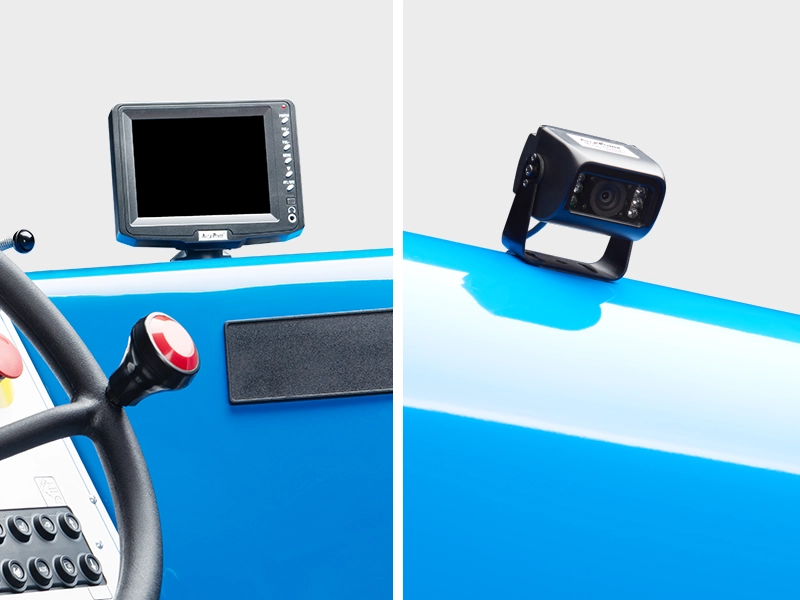

The front camera is built into the machine and displays live footage on a screen at the driver’s station. Upon request, a recording function can also be added.

Advantage
In areas with limited visibility, the front camera provides extra clarity, enhancing safety.

With the push of a button on the dashboard, the driver’s seat is electrically heated, warming both the seat cushion and backrest for optimal comfort.

Advantage
A heated driver’s seat ensures a comfortable working experience, even in freezing temperatures.

The electrically controlled Acquastop valve is installed in the water line and regulates the filling of the ice resurfacer in the garage. Installation is carried out by the ice arena’s professional staff. A cable from the ice resurfacer controls the Acquastop valve. The ice master sets the desired water tank level on the display. Once the specified level is reached, the machine automatically stops filling and shuts down to save energy.

Advantage
No more wet floors in the garage! The Acquastop valve reliably fills the water tank to the desired level. After filling, the machine automatically shuts off, preventing water overflow and saving both water and energy.

With the underbody lighting activated, the machine appears to glide over the ice, drawing full attention—not just during events. New: the party mode for special lighting effects.

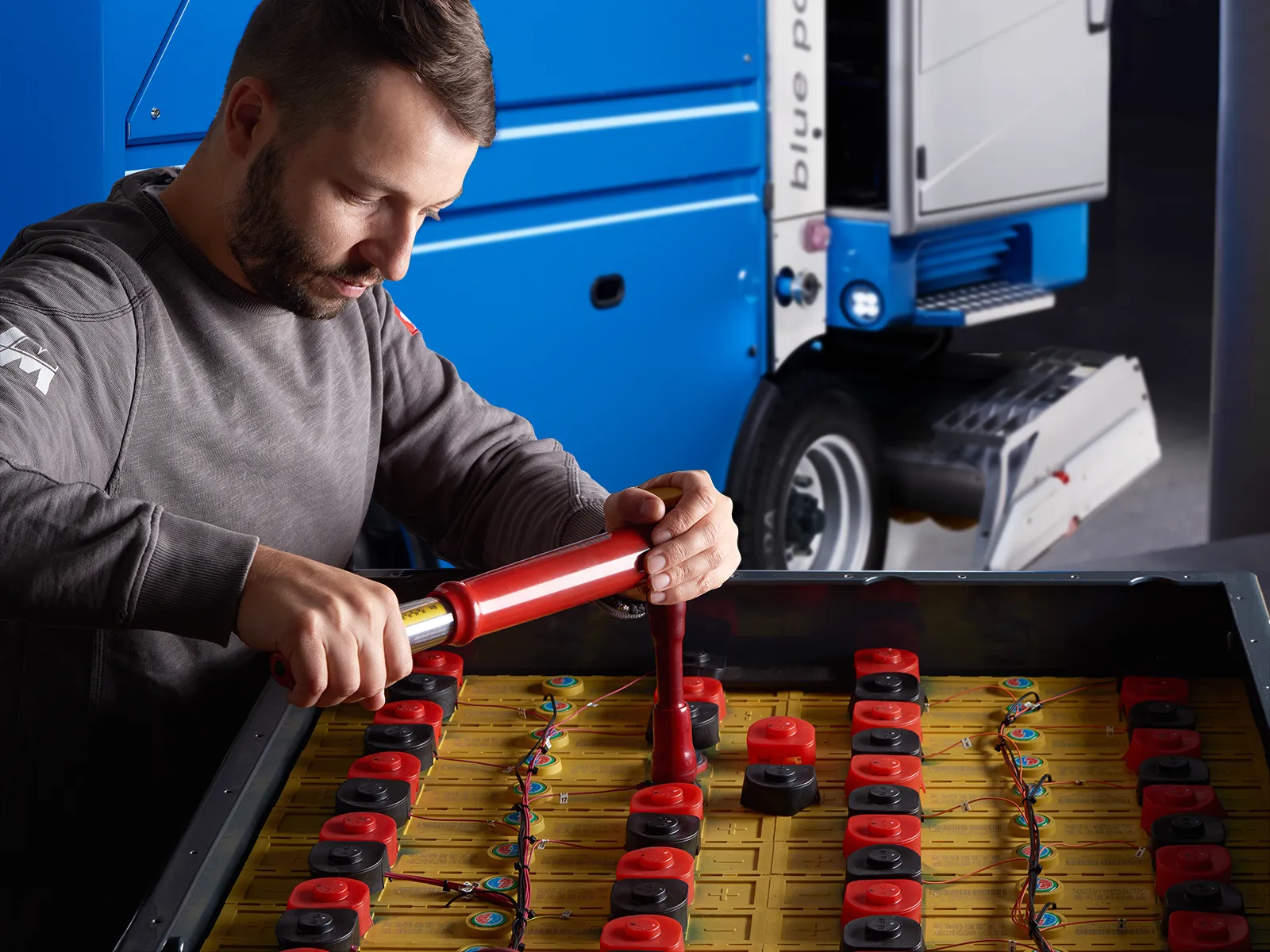

The pallet truck with WM attachment enables safe, easy, and quick battery pack removal. We recommend this option for lead-acid batteries during annual maintenance and inspection.

Advantage
The battery trolley simplifies the maintenance and inspection of lead-acid batteries. The battery can be swiftly and comfortably removed from the ice resurfacer, with one person completing the task in less than 10 minutes.

The spare wheel has the same dimensions as the machine’s tires. It comes assembled with spiked tires, a tube, and a rim.

Advantage

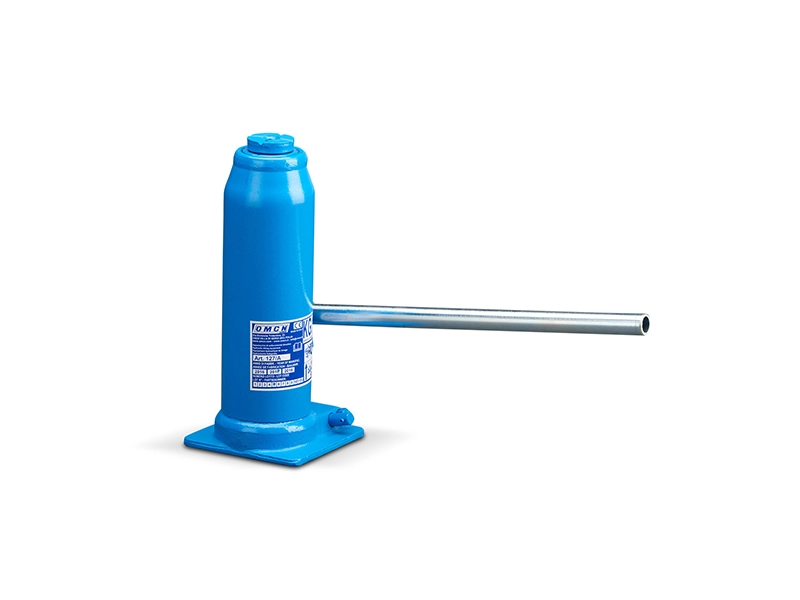

A flat tire can happen, but with the spare wheel, you’re guaranteed to avoid downtime. Simply remove the hubcap, lift the ice resurfacer with a jack, and change the wheel. You’re back in action in no time!

This mounting tool allows you to quickly and easily screw or unscrew the ICEplus nozzles. Attach it, turn it 90°, and the nozzle is either secured or loosened.

Advantage
The nozzles of the ICEplus system can be fastened or removed quickly and effortlessly.

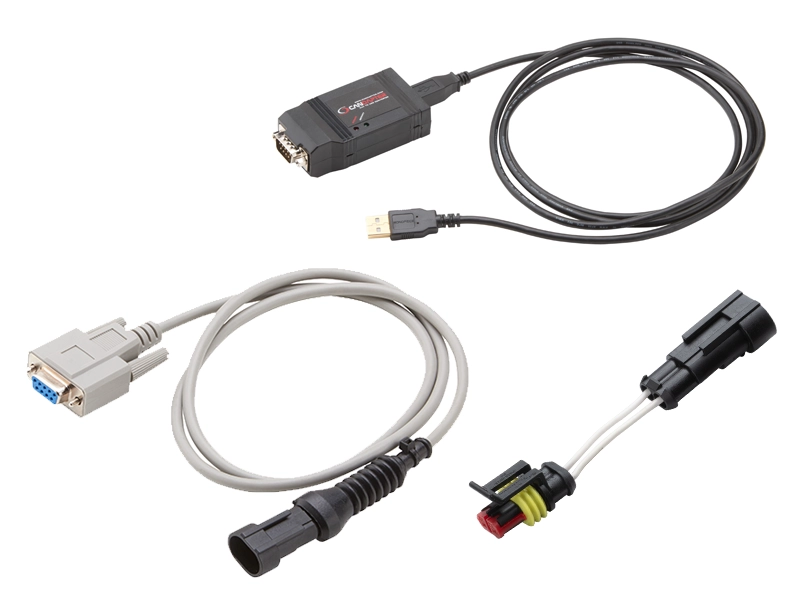

Diagnostics cable controller
The diagnostics cable controller connects the main control unit of the vehicle to the PC. A technician can connect via remote access to carry out updates and detect and monitor faults.

Diagnostics cable, power board & actuator board
The diagnostics cable connects the vehicle’s actuator board and power board to the PC. A technician can connect via remote access to carry out updates and detect and monitor faults.

BMS diagnostics cable
The BMS diagnostics cable connects the vehicle’s lithium battery to the PC, enabling the user to visualize battery data on clearly organized software. A technician can connect via remote access to carry out updates and detect and monitor faults.

CAN bus diagnostic cable
The CAN-to-USB cable enables monitoring of CAN traffic data and can be used by the service technician to diagnose faults in the CAN bus system.

The groove harrow is attached to the sledge. It grooves the ice, providing the perfect surface for Bavarian curling. When used with the ICEplus system, the flaps must be removed.

Advantage
Bavarian curling requires a specific ice surface: the ice must be roughened so the curling stone can glide properly. The groove harrow creates the ideal surface for this.
