Mammoth
WM’s powerful ice resurfacer for stadiums is suitable for ice surfaces of 2,600 m² / 28,000 ft².
When it comes to flawless resurfacing of stadium rinks, the Mammoth has it all: High-performing, maintenance free AC motors, large snow and water tank capacity and a quick blade change system. With its compact build, the machine has an extremely tight turn radius, which means that the ice can be resurfaced quickly, efficiently and without overlaps. Technically sophisticated, user-friendly and with numerous extras: Mammoth is the champion of professional ice resurfacing of rinks of 2,600 m2 / 28,000 ft².
3 m³ / compacted 3.6 m³
106 ft³ / compacted 127 ft³
1,000 l / 1,350 l / 1,750 l
264 gal / 356 gal / 462 gal
+ snow tank-water tank connection
2,000 l / 2,350 l / 2,750 l
528 gal / 620 gal / 726 gal
2,100 mm / 2,300 mm / 2,500 mm
82 5/8 in / 90 1/2 in / 98 7/16 in
Blade change < 60 seconds
Pro / Ice stadiums
360° view
Drag to view
Highlights
The outstanding highlights of Mammoth at a glance: Find out exactly why the Mammoth is the perfect ice resurfacer for your stadium.
Great Usability

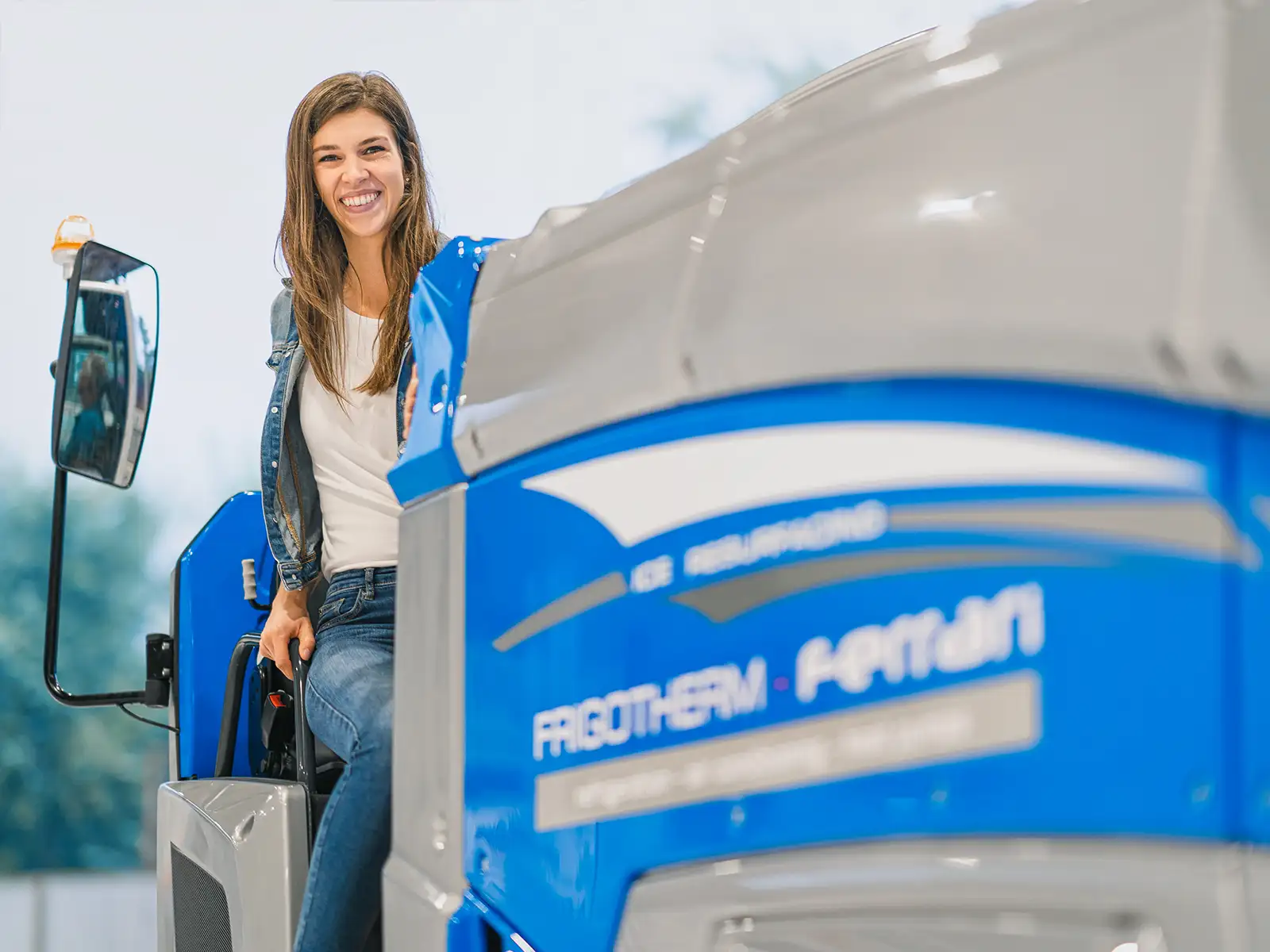

The Passenger Seat
Integrated Edger
Flexible Brush
Ultra-light Blade
High-performance Conditioner
System ICEplus
Snow tank-Water tank

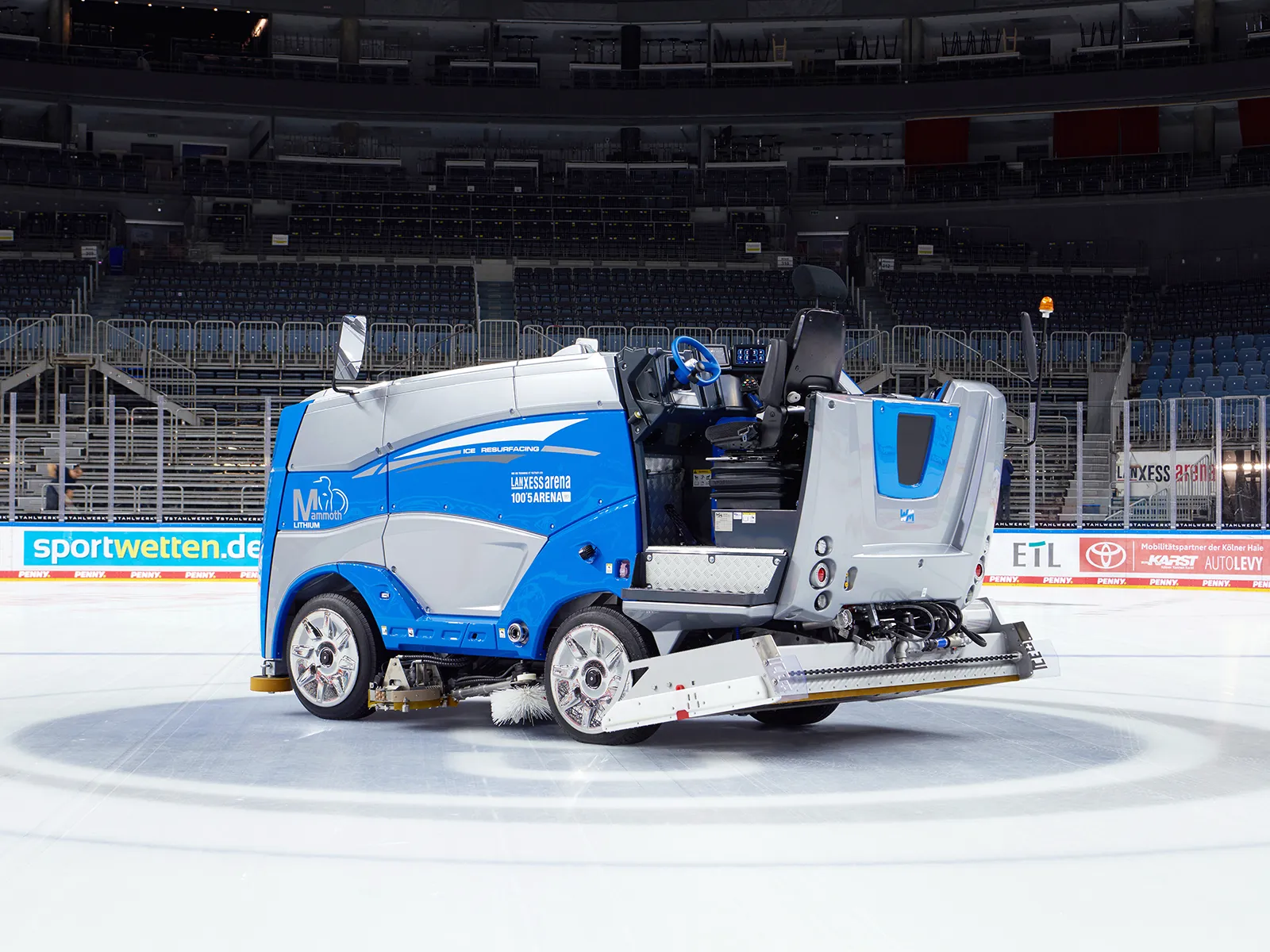

Three Braking Systems
System Dual Drive
LiFePO4 Lithium battery
Features
The Mammoth sets new standards in ice resurfacing: cutting-edge design meets advanced technology. Perfectly calibrated for maximum performance on ice – with or without a driver, fully electric and sustainable. Discover the details of our e-revolution.
Included in delivery
2 blades in wooden transport box
Ultra-light blade (3.5 kg / 7.7 lbs)
2 towels
2 rubber mats
Adjustment tool

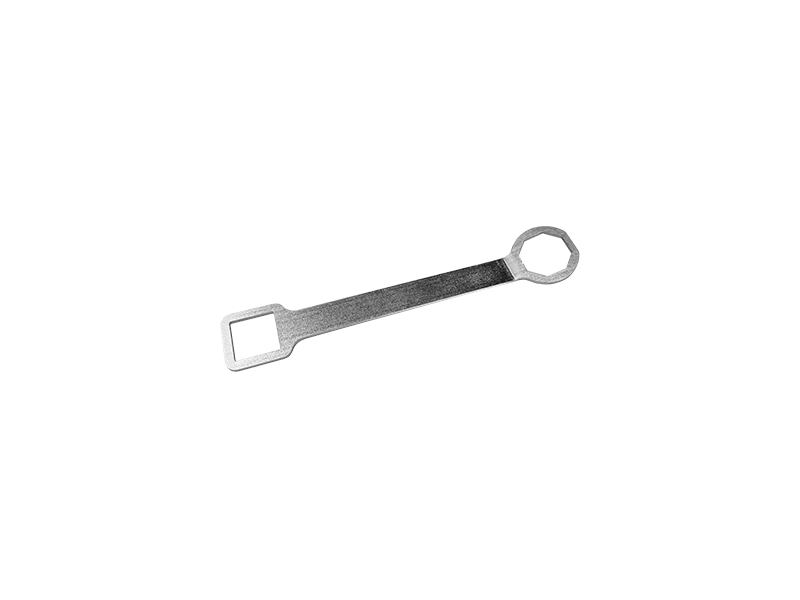

Key for water and hydraulic oil filters

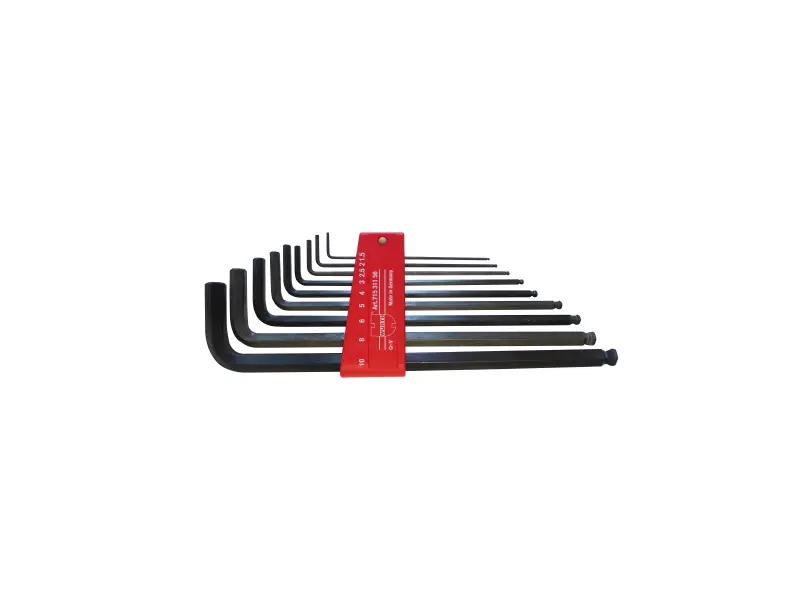

1 set of Allen keys

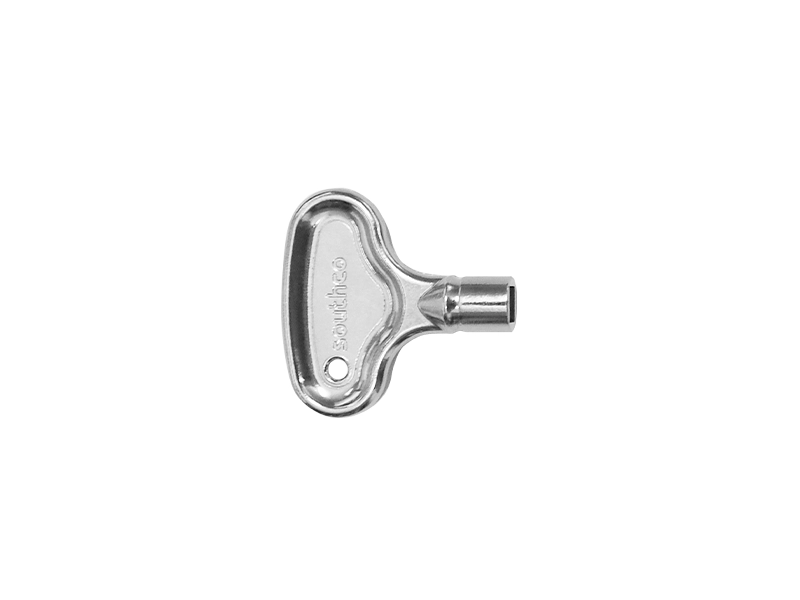

Bodywork key
Set ABS fastening material
Laceration-proof safety gloves
Grindstone
Storz coupling C with nozzles ø 32, ø 40, ø 50

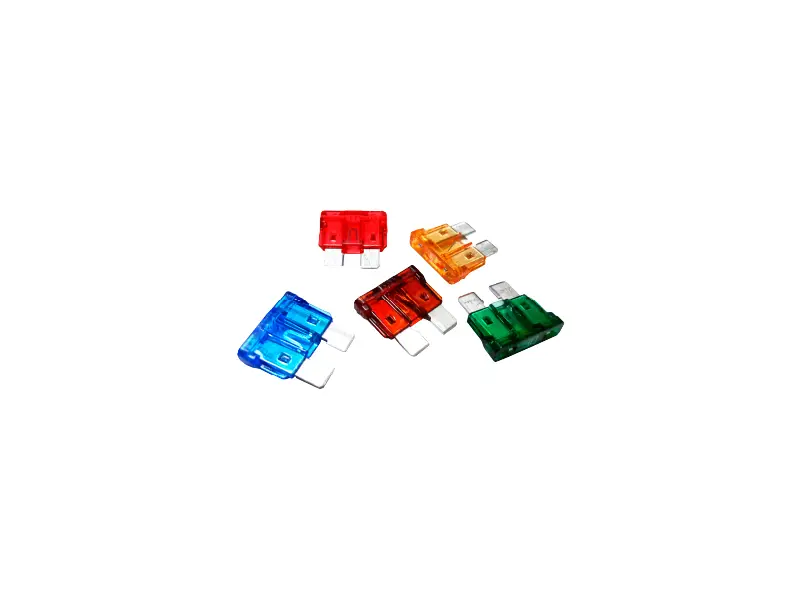

Fuse set
Instruction manual
Online spare parts catalog
Link WORKspace
Steel Mammoth

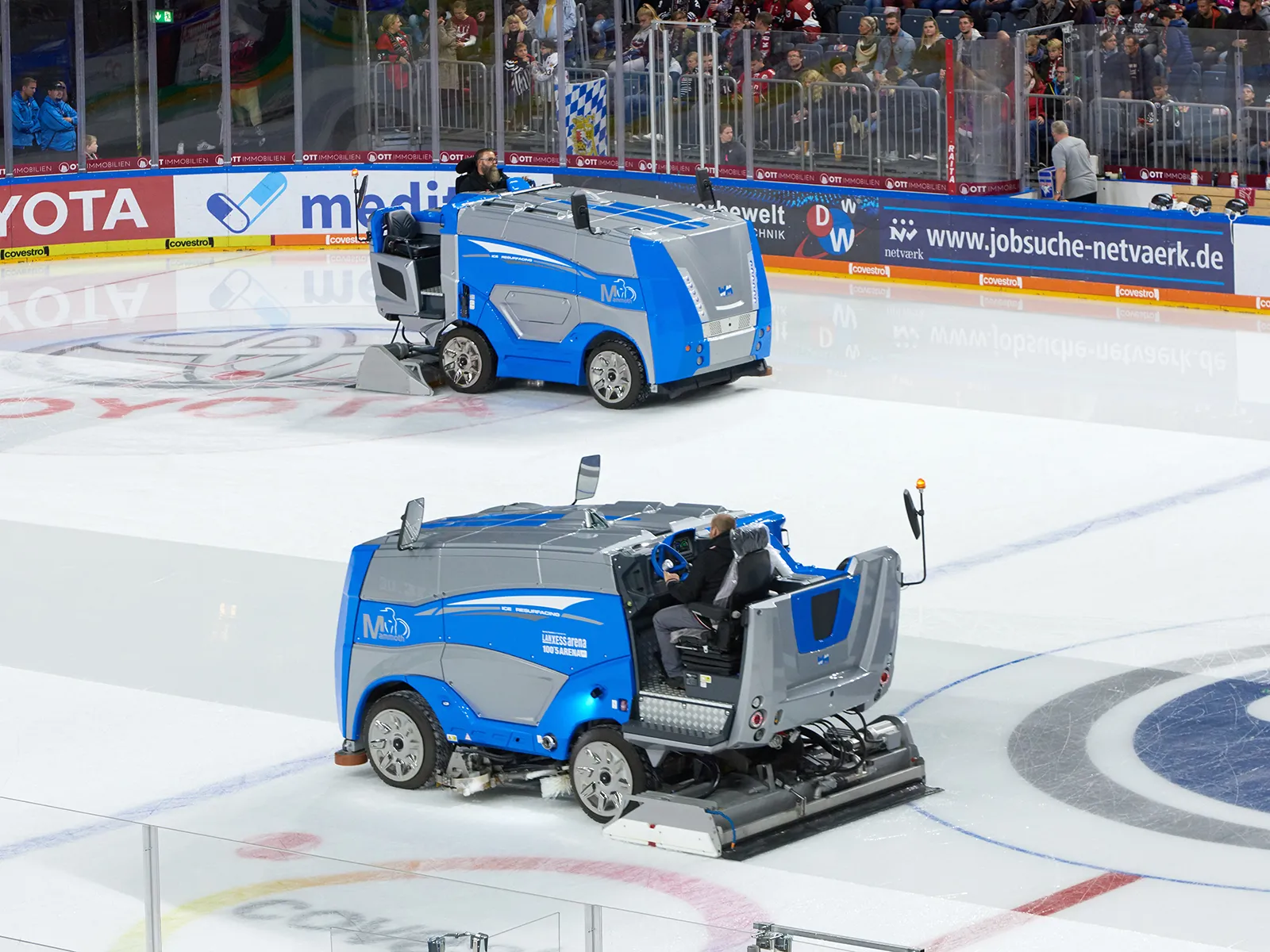

Safety and protective features
At WM technics, safety and health protection always come first. A thorough and independent inspection carried out by Suva, the accredited and recognized Swiss certification body, confirms compliance with the European Directive 2006/42/EC, which regulates the level of protection against machinery-related accidents to ensure user safety.
In compliance with Suva certification No. E 7138/2.e
Optionals
Mammoth, the machine with no limits: with a wide range of accessories, you can configure your machine to perfectly suit your specific needs.
with suction ledge
can be activated during ice resurfacing
can be activated during ice resurfacing
The water pump supplies the water dosing system at the sledge and the ice washing system with water. It draws water from the tank and delivers it to the machine at a constant pressure, regardless of the water level in the tank. The pump provides the exact amount of water the machine requires based on various parameters (driving speed, steering angle, etc.). Unique feature: a single pump supplies all water-consuming components in the machine.
Advantage
The water application adjusts to the machine’s speed and steering angle, independent of the tank’s water level. Manual adjustment of the water dosing remains possible at any time.
Required equipment: water pump
In the sledge, located behind the planing blade, is the ice washing system. Nozzles spray clean water onto the freshly planed ice surface, washing away snow remnants, hair, skin particles, sand, or dust from the ice grooves. A rubber lip collects the dirty water at the end of the sled, and a suction pump draws it through the suction ledge positioned in front of the rubber lip and transports it to the snow tank.
For outdoor rinks, in case of rain, the suction pump can be used to remove rainwater from the ice surface through the suction ledge. It’s essential to ensure there is a sufficient amount of rainwater to avoid damaging the pump.
The ice washing system can maintain lightly used ice surfaces without requiring additional water. This allows the ice surface to be used immediately and reduces energy consumption for cooling.
Advantage
Perfectly clean ice is guaranteed. Any damage to the ice is cleared of snow remnants and dirt using water nozzles. The dirty water is suctioned from the ice surface with the suction ledge. Once the ice surface is clean, you can rebuild the ice with the towel or ICEplus. This results in more transparent ice, making advertising inserts more visible. Additionally, the faster bonding process of the new ice layer helps save energy.
Required equipment: water pump
The screw conveyor wash system is supplied with water from the machine’s central water source. Water is sprayed along the entire length of the screw channel, thoroughly cleaning the screw conveyor from end to end. This wash system can be activated independently during operation, whether the machine is moving or stationary, with the sledge raised or lowered, and regardless of whether the screw conveyors are rotating or not.
Advantage
If the screw conveyors start to clog, you can clean them effortlessly with the push of a button on the display. There’s no need to stop—the ice resurfacing continues seamlessly. This function is available at any time, whether you’re on the ice or in the garage.
Required equipment: water pump
The screw conveyor wash system is supplied with water from the machine’s central water source. Water is sprayed along the entire length of the screw channel, thoroughly cleaning the screw conveyor from end to end. This wash system can be activated independently during operation, whether the machine is moving or stationary, with the sledge raised or lowered, and regardless of whether the screw conveyors are rotating or not.
Advantage
If the screw conveyors start to clog, you can clean them effortlessly with the push of a button on the display. There’s no need to stop—the ice resurfacing continues seamlessly. This function is available at any time, whether you’re on the ice or in the garage.
Required equipment: water pump
The vehicle’s central water supply routes water to the snow tank wash system. Water pipes attached to the three outer sides of the snow tank spray the outer walls at the press of a button and wash away all residual snow.
Advantage
Snow is cleared from the driver’s cab to ensure it is kept clean and in good condition. In particularly stubborn conditions, such as extreme calcification or cold, the wash system helps to remove all snow from the tank.
Required equipment: water pump
The wheel wash system is supplied with water from the machine’s central water supply. Steering spray elements clean the two front wheels, while the spray elements for the rear wheels are mounted on the sledge.
Special feature: The wash position is located close to the ground, where the tires pick up the most dirt. This means the dirt is washed off before it can contaminate the machine. Clean tires help keep the ice surface at the entrance spotless.
A cleaner ice surface reduces wear on the planing blades, extending their lifespan.
Advantage
Clean ice benefits not only the athletes but also extends the life of the planing blades, saving on costs. Activating the steering wheel wash system before entering the ice efficiently protects the surface from contamination.
Water spraying system
Water spraying system with automatic towel lifter
The classic ice resurfacing method with enhanced towel protection: The towel only touches the ice surface during water application and is lifted at all other times. This prevents freezing while the machine is stationary and keeps the towel clean from ground contact. As a result, the towel stays in better condition and lasts longer.
Advantage
Efficient water distribution is maintained over extended periods of time. At the start of resurfacing, you drive the first few meters without using the towel, only lowering it onto the snow-free surface. This keeps the towel free of snow, ensures even water application, and immediately optimizes the ice quality. When the ice resurfacer stops, the towel automatically lifts, preventing it from freezing to the surface.
Required equipment: water pump
The ICEplus system operates without a towel: Water is sprayed directly onto the ice surface via nozzles. The water freezes faster, filling in deep grooves more effectively, and the transitions between planing paths are smooth. Using low-pressure technology minimizes spray mist, while flaps on the sides of the sledge prevent water droplets from reaching the already resurfaced lane.
Advantage
A brilliant, mirror-smooth ice surface! The innovative nozzle system applies water without a towel, ensuring it settles better in deep grooves.
The low-pressure system minimizes spray mist, preventing increased humidity inside the ice rink. The already resurfaced lane remains unaffected by stray water droplets. The faster drying time also enhances energy efficiency.
Required equipment: water pump
Combining an automatic towel and nozzle system gives you maximum flexibility in ice resurfacing. All components are securely mounted on the sledge, allowing you to choose between using the nozzle or the towel for resurfacing at any time. A simple push of a button on the joystick is all it takes.
The water sprayer features a high-performance pump integrated into the machine and a rear-mounted spray nozzle. It distributes a large volume of water evenly across the ice in no time. Controlled effortlessly from the driver’s station, both the water flow and spray range can be continuously adjusted via a dial while on the move.
With a newly designed spray nozzle and optimized droplet shape, the system ensures water is applied in large droplets with minimal air bubbles, making ice building and leveling a breeze. After use, the spray nozzle can be easily detached and stored with just one hand.
Advantage
Our motto: “No steps on the ice.” The water sprayer allows you to build the ice comfortably and safely from the machine, leaving wet feet in the past. The redesigned nozzle ensures an ideal spray pattern and droplet size. You can adjust the water flow and spray height directly from the driver’s station. Large droplets fall smoothly onto the surface, creating an even ice layer without air pockets. The sprayer can also be used to level the ice.
Pro-tip for flawless ice: Use the water sprayer 3 to 4 times a week after the final resurfacing in the evening for perfectly smooth ice.
and recording function
The extra-large reflective side mirrors can be optionally heated to prevent fogging. A right rear mirror comes standard, while additional mirrors can be added to the front left and right.
Advantage
Optimal visibility of the sledge is ensured. We recommend adding front-side mirrors for extra safety when navigating narrow passages.
The extra-large reflective side mirrors can be optionally heated to prevent fogging. A right rear mirror comes standard, while additional mirrors can be added to the front left and right.
Advantage
Optimal visibility of the sledge is ensured. We recommend adding front-side mirrors for extra safety when navigating narrow passages.
Four front-mounted distance sensors alert the driver to obstacles in front of the machine via a display at the driver’s station and an audible warning signal.
Advantage
No more collisions! In tight spaces or near obstacles, the acoustic distance warning helps you maneuver and park precisely, avoiding damage to the machine.

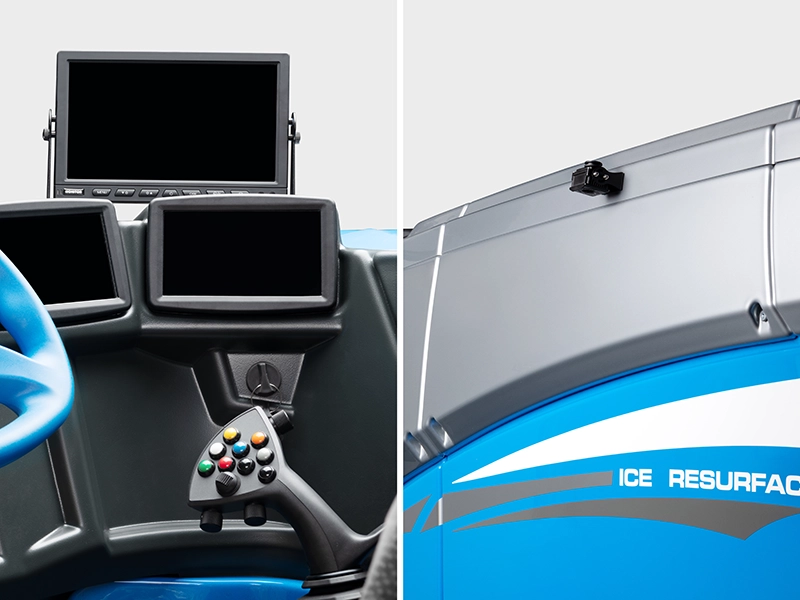

The front camera is built into the machine and displays live footage on a screen at the driver’s station. Upon request, a recording function can also be added.
Advantage
In areas with limited visibility, the front camera provides extra clarity, enhancing safety.
The rearview camera is installed at the back of the machine and displays live footage on a screen at the driver’s station. A recording function can be added upon request.
Advantage
You get full visibility of the machine’s rear without needing to turn your head.
Stainless steel, spring-mounted and electric height adjustment
The edger is mounted on an independent arm attached to the machine frame, separate from the brush. It has a diameter of 35 cm (13 3/4 inches), is equipped with 12 reversible blades, and is made from stainless steel. Controlled from the driver’s station, the edger is extended, retracted, and activated via the multifunction joystick and hydraulic cylinder. The cutting depth is continuously adjustable using a dial. With its 3 guide rollers and 5 cm (2 inches) of spring travel, the edger adapts perfectly to the contour of the boards, leaving a clean, 35 cm (13 3/4 inches) wide strip where the sled runner follows. The WM edger is a standout feature known for its robust and durable construction.
Advantage
Our motto: “No steps on the ice.” The ice near the boards can be prepared quickly, comfortably, and safely for the next championship game, keeping your feet dry. The cutting depth can be adjusted from the driver’s station (up to -6 mm or -1/4 inch). The edger can easily shave ice bumps on the rink.
After use, the edger is retracted.
Both the brush and edger can be used separately or simultaneously.
with wiper system
Seat pad and backrest
with 2x 10 cm speakers
The glass windshield is a stylish, professional solution to protect the ice master from cold driving winds. The integrated wiper and washer system ensures clear visibility.
Advantage
The windshield shields you from cold winds, providing a comfortable and neat driving experience.
Mammoth is the first ice resurfacer designed with a cabin. The result is a sleek and convenient solution: lightweight aluminum frames support the panoramic windows for clear all-around visibility. The large cabin door with a sliding window ensures easy entry and exit.
Advantage
The cabin protects you without hindering your driving. Large panoramic windows provide clear 360° visibility, offering full protection from cold and moisture while ensuring maximum driving comfort.
The powerful electric cabin heater quickly warms the driver’s cabin to a comfortable temperature. Warm air is evenly distributed throughout the cabin via strategically placed air vents. The heating performance is adjustable in three levels.
Advantage
Resurfacing ice in a T-shirt? In the heated cabin, it’s entirely possible. The air vents spread warmth evenly across the cabin, and you can choose between three heat settings for maximum comfort.
With the push of a button on the dashboard, the driver’s seat is electrically heated, warming both the seat cushion and backrest for optimal comfort.
Advantage
A heated driver’s seat ensures a comfortable working experience, even in freezing temperatures. The seat heating is available for machines with or without a cabin.
The electrically controlled Acquastop valve is installed in the water line and regulates the filling of the ice resurfacer in the garage. Installation is carried out by the ice arena’s professional staff. A cable from the ice resurfacer controls the Acquastop valve. The ice master sets the desired water tank level on the display. Once the specified level is reached, the machine stops filling and shuts down to save energy.
Advantage
No more wet floors in the garage! The Acquastop valve reliably fills the water tank to the desired level. After filling, the machine automatically shuts off, preventing water overflow and saving both water and energy.
Connect is an all-in-one system that functions as a data tool, communication assistant, and e-shop. It analyzes your machine’s resource consumption, facilitating efficient budget planning. With precise data analysis and targeted tool usage, your ice quality remains consistently high.
The system keeps you updated with automatic status notifications about the machine’s condition. Service personnel can be supported through over-the-air access to resolve issues or perform software updates when needed. Replacement parts can be identified quickly and easily with just a few clicks.
Advantage: Continuous monitoring and controlling machine functions enables proactive maintenance and optimal resource utilization. With just one click, you gain the necessary information to maintain full control over operations and the quality of your ice surface.

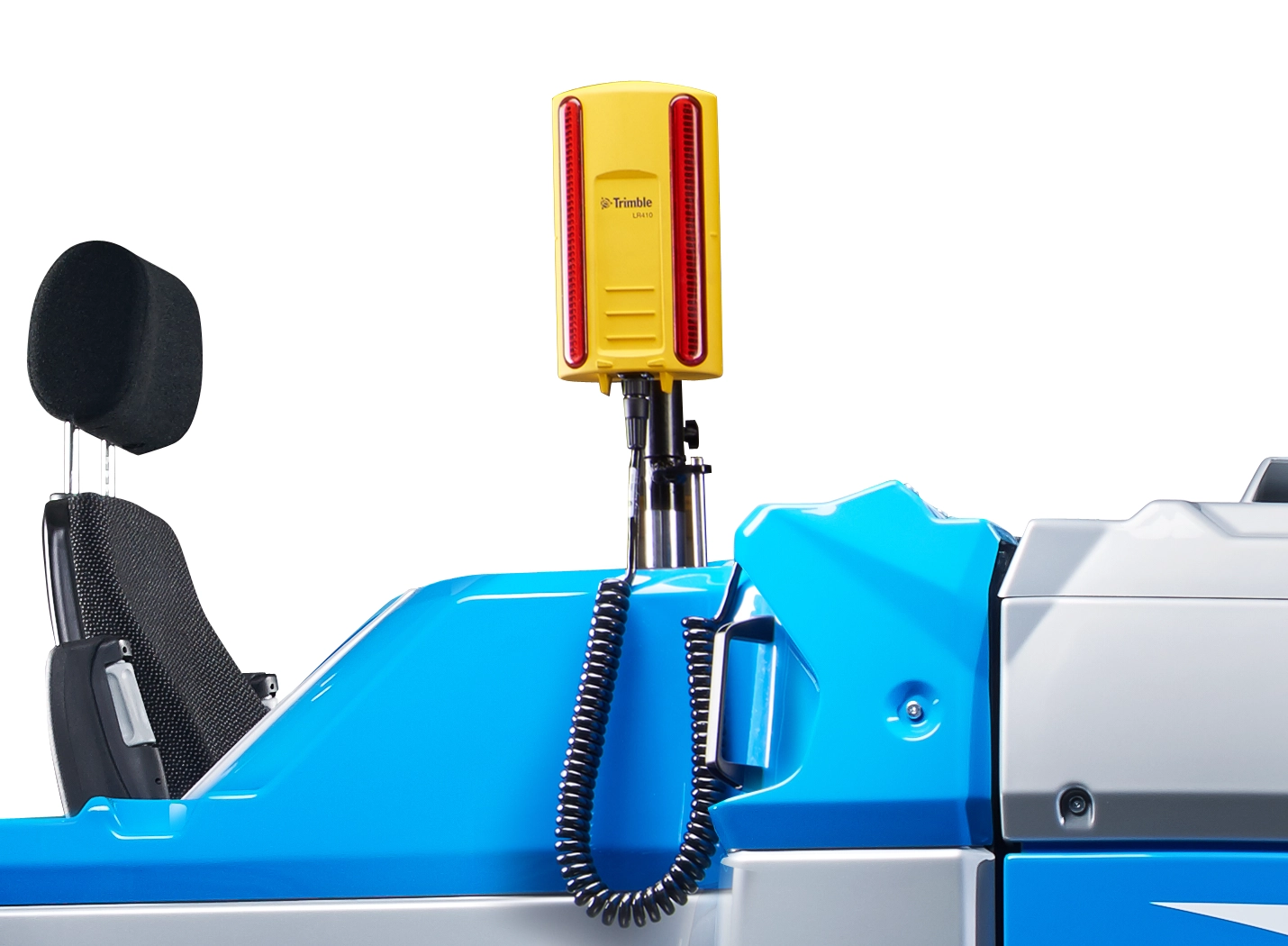

The Autopilot 3D by WM technics is an advanced, autonomous ice maintenance system that ensures consistent ice quality and optimal thickness. Integrated into the Mammoth machine, it independently manages ice regulation and optimizes energy consumption.
The system maximizes efficiency and lowers cooling costs by precisely controlling ice thickness. Every additional centimeter of ice can increase cooling demands by up to 15%, making these energy savings significant. The Autopilot 3D provides flexibility to the ice master, who can monitor and control the machine from a safe distance via Connect, freeing up time for other tasks.
Advantage: The Autopilot 3D not only reduces energy consumption but also lowers operational expenses through its automated process. State-of-the-art technology, including a laser leveling system, ensures easy operation and fully autonomous performance, resulting in optimal machine usage and promoting environmental sustainability.
Parking light and brake light
front, rear and side
for compliance with road traffic regulations

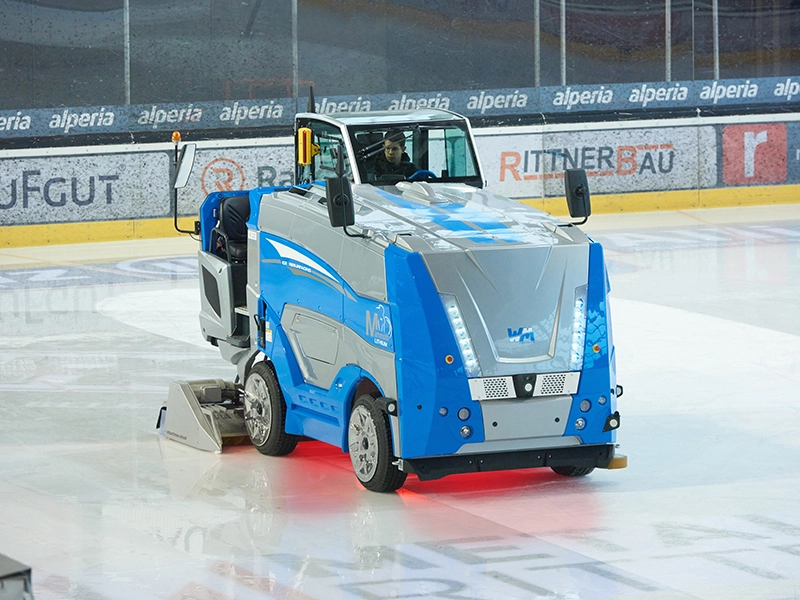

The underbody lighting, controllable from the cabin, adds a unique aesthetic touch to the machine. You can change the color (RGB) with the push of a button. If you’re looking to liven up the atmosphere, the party mode offers fast-changing, flashing colors. In autopilot mode, the underbody lighting indicates the machine’s current task.
Advantage
With the underbody lighting activated, the machine appears to glide over the ice, drawing full attention—not just during events. New: the party mode for special lighting effects.
The pallet truck with WM attachment enables safe, easy, and quick battery pack removal. We recommend this option for lead-acid batteries during annual maintenance and inspection.
Advantage
The battery trolley simplifies the maintenance and inspection of lead-acid batteries. The battery can be swiftly and comfortably removed from the ice resurfacer, with one person completing the task in less than 10 minutes.
The spare wheel has the same dimensions as the machine’s tires. It comes assembled with spiked tires, a tube, and a rim.
Advantage
A flat tire can happen, but with the spare wheel, you’re guaranteed to avoid downtime. Simply remove the hubcap, lift the ice resurfacer with a jack, and change the wheel. You’re back in action in no time!
This mounting tool allows you to quickly and easily screw or unscrew the ICEplus nozzles. Attach it, turn it 90°, and the nozzle is either secured or loosened.
Advantage
The nozzles of the ICEplus system can be fastened or removed quickly and effortlessly.
The groove harrow is attached to the sledge. It grooves the ice, providing the perfect surface for Bavarian curling. When used with the ICEplus system, the flaps must be removed.
Advantage
Bavarian curling requires a specific ice surface: the ice must be roughened so the curling stone can glide properly. The groove harrow creates the ideal surface for this.
Where they choose Mammoth
United States
Turkiye
Switzerland
Slovenia
Switzerland
Sweden
Germany
Belgium
Switzerland
Austria
Switzerland
Bulgaria
Switzerland
Germany
Switzerland
Germany
Hungary
Switzerland
Switzerland
Germany
Poland
Poland
Poland
Poland
Poland
Czech Republic
Slovakia
United States
Italy
Estonia
Sascha Koullen
“The Mammoth has met all of my expectations: It guarantees flawless ice quality, is 100% reliable and working with it is a joy!”
LANXESS arena (Germany)
Downloads
Catalogue Mammoth
SUVA type-examination certificate no. E 7138/2.e
