The mini-revolution in ice resurfacing: with its compact size and agility, the Pinguino delivers perfect ice conditions for events and mobile rinks with surfaces up to 800 m² / 8,600 ft².

Whether it’s a sports event or an ice skating rink, you can easily keep your designated ice surface flawlessly maintained with Pinguino.


This innovative, compact ice resurfacer (measuring 3 meters in length and 2 meters in height / 10 ft length x 6.5 ft height) performs on par with larger professional machines: it efficiently planes the ice, ensuring perfect quality. Plus, its unique front seating position for the driver offers excellent visibility and a comfortably enjoyable driving experience.


Modern design, high quality, and easy maintenance – ice resurfacing for mobile rinks has never been this professional and comfortable!

Get more info
Snow tank volume

1 m³ / compacted 1.25 m³
35.3 ft³ / compacted 44.2 ft³

Water tank volume

340 l
90 gal

Blade width

1,400 mm
55 1/8 in

Fields of operation

Event / Small ice rinks


360° view

Drag to change the 360 view angle

Drag to view


Highlights

There are countless reasons to choose the Pinguino! Discover why the Pinguino is the perfect ice resurfacer for mobile rinks.

Front seat

Ready, sit, go! On the Pinguino, the driver’s seat is at the front, just like in a car, making operating the machine easier, even for less experienced users.

Learn more

Man driving an ice maintenance vehicle on an ice rink.

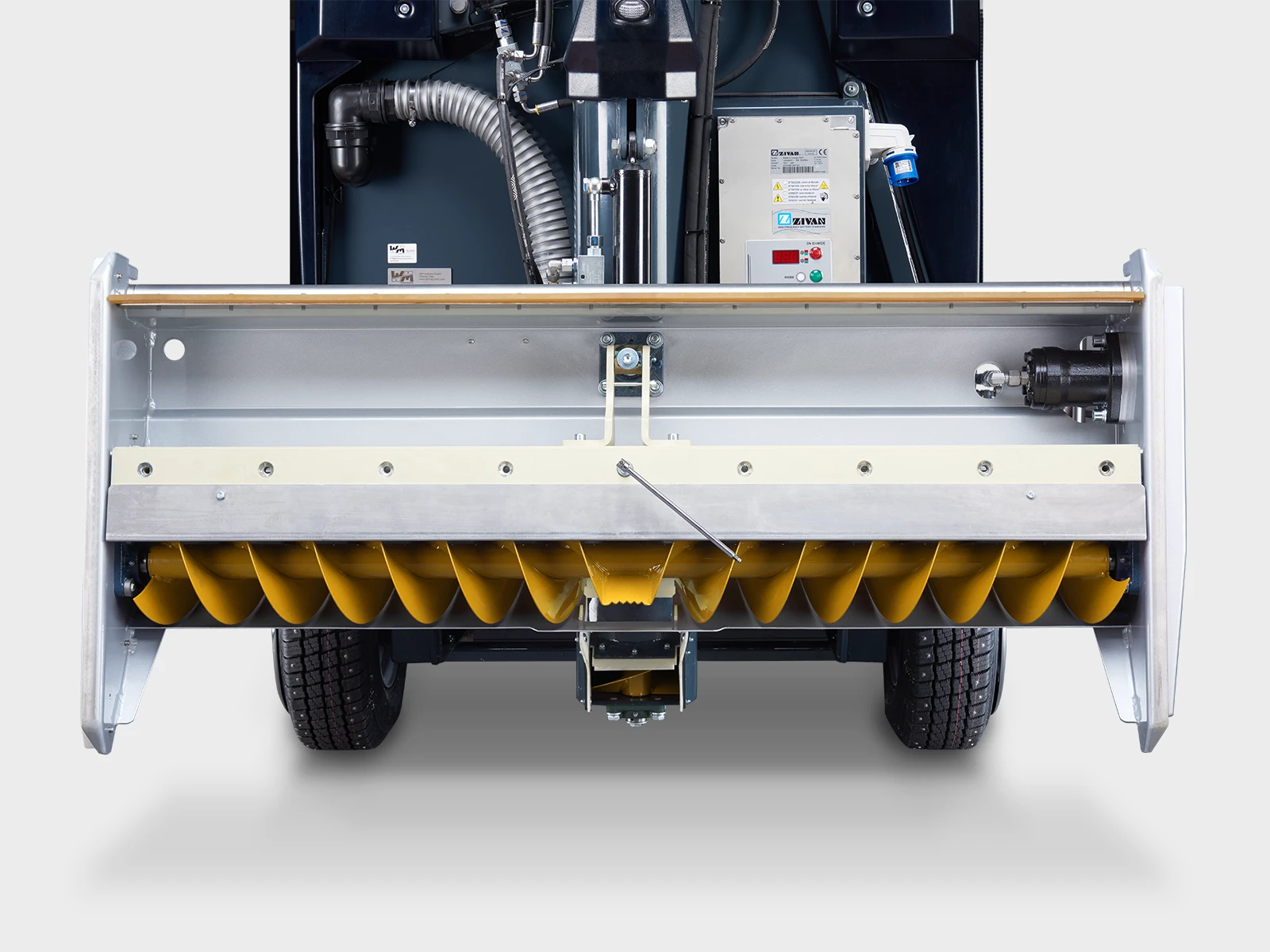

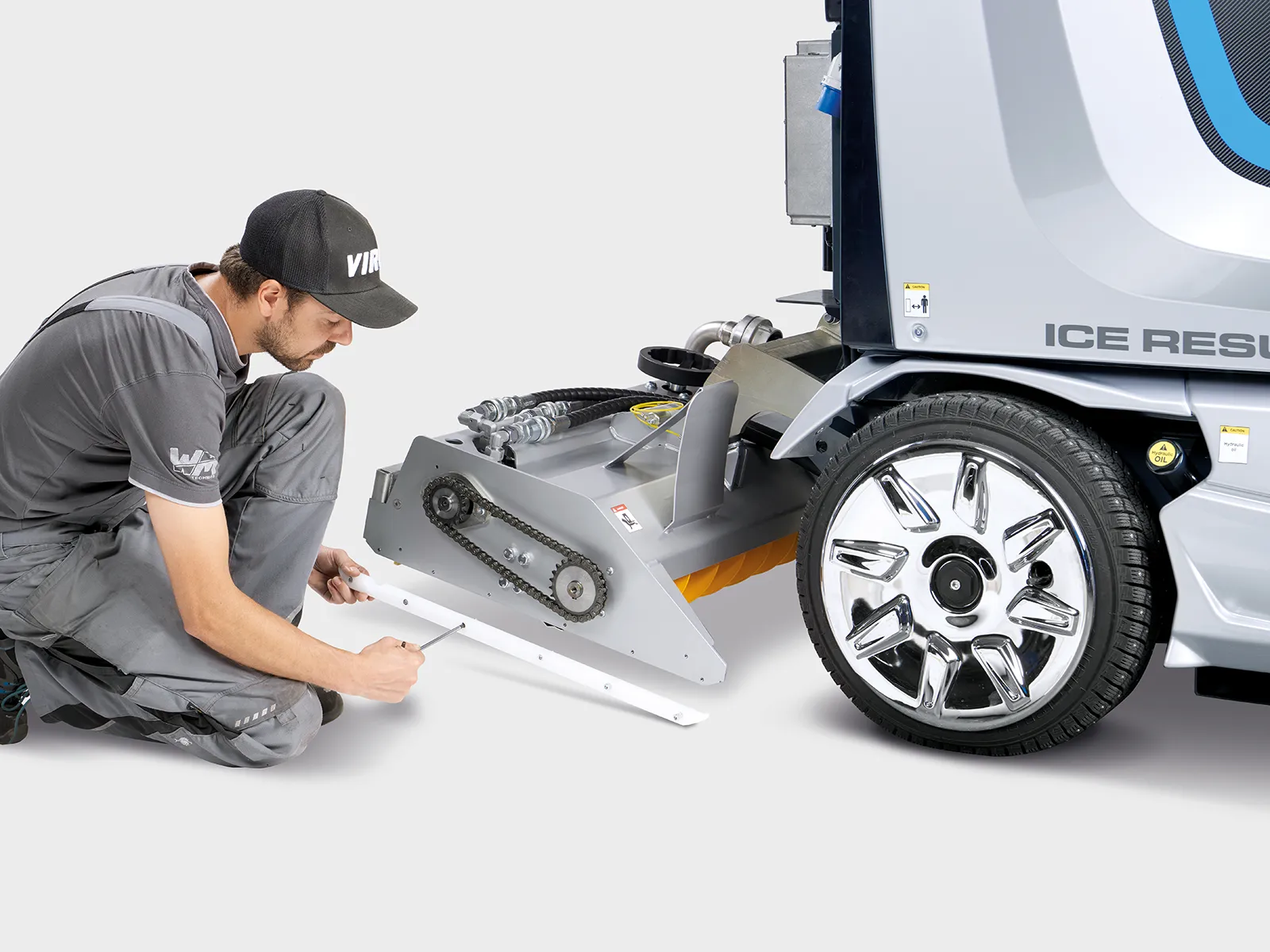

Blade replacement

Replacing the blade is easy and quick. There’s no need to detach the conditioner. Just flip it upwards and remove the blade. Done!

Learn more

Replaceable runners

Simple, quick, and safe. The Pinguino’s runners are made from a special material and can be replaced easily and in no time if damaged – minimizing downtime and ensuring reliable operation.

Learn more

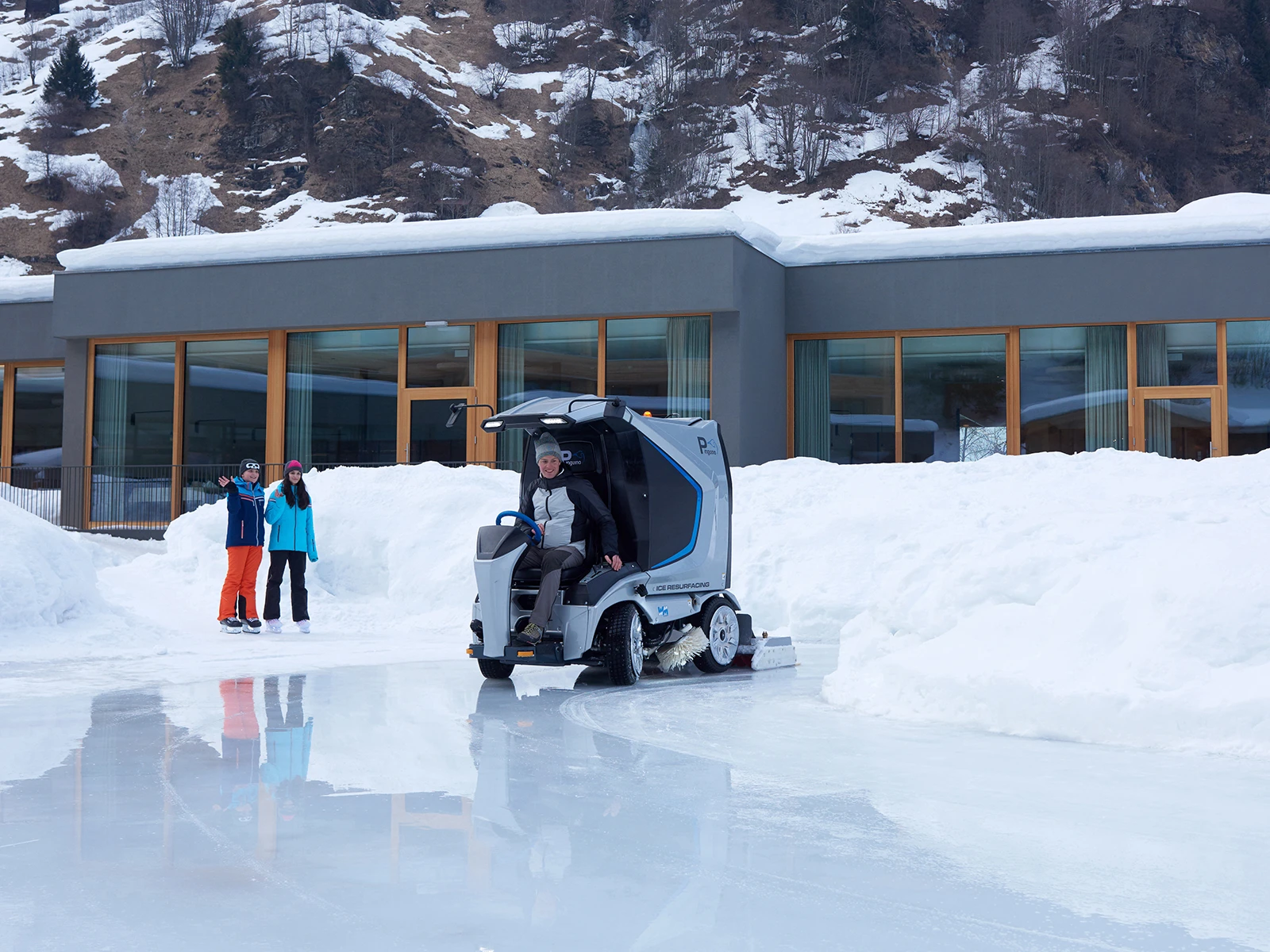

Perfect ice maintenance

The Pinguino might be compact, but it planes just like a big professional machine, ensuring top-notch ice resurfacing even on mobile rinks. Plus, the optional brush attachment guarantees clean edges.

Learn more

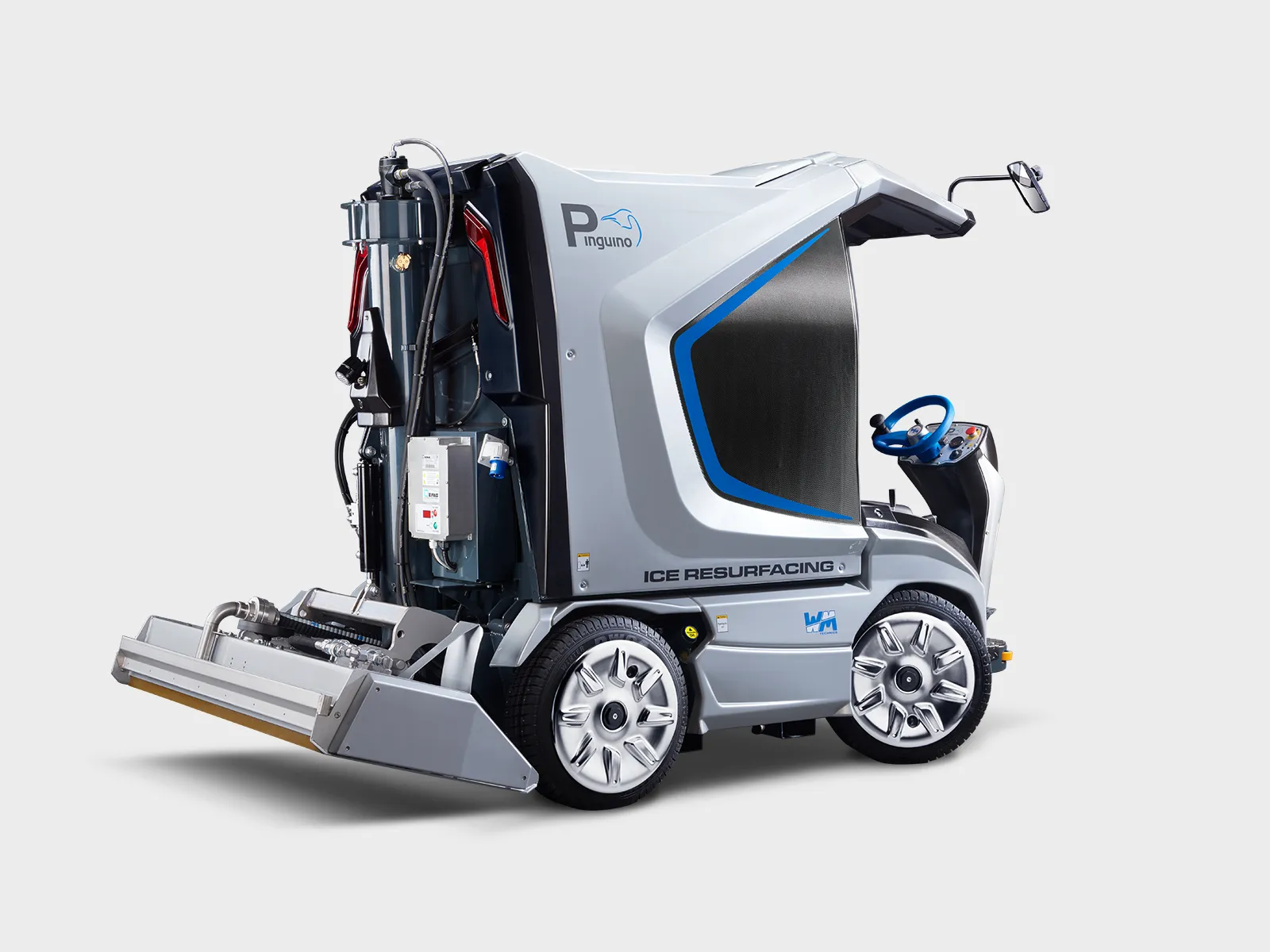

Built-in charger

Loaded and ready to go. The charging station is built directly into the Pinguino, eliminating the need for bulky chargers in your garage—and putting an end to hauling cumbersome cables back and forth.

Learn more

Lighting

Efficient lighting for the best visibility. The combination of LED lights and powerful headlights always ensures optimal visibility.

Learn more

Detail of the front bumper of an electric vehicle with lights on.

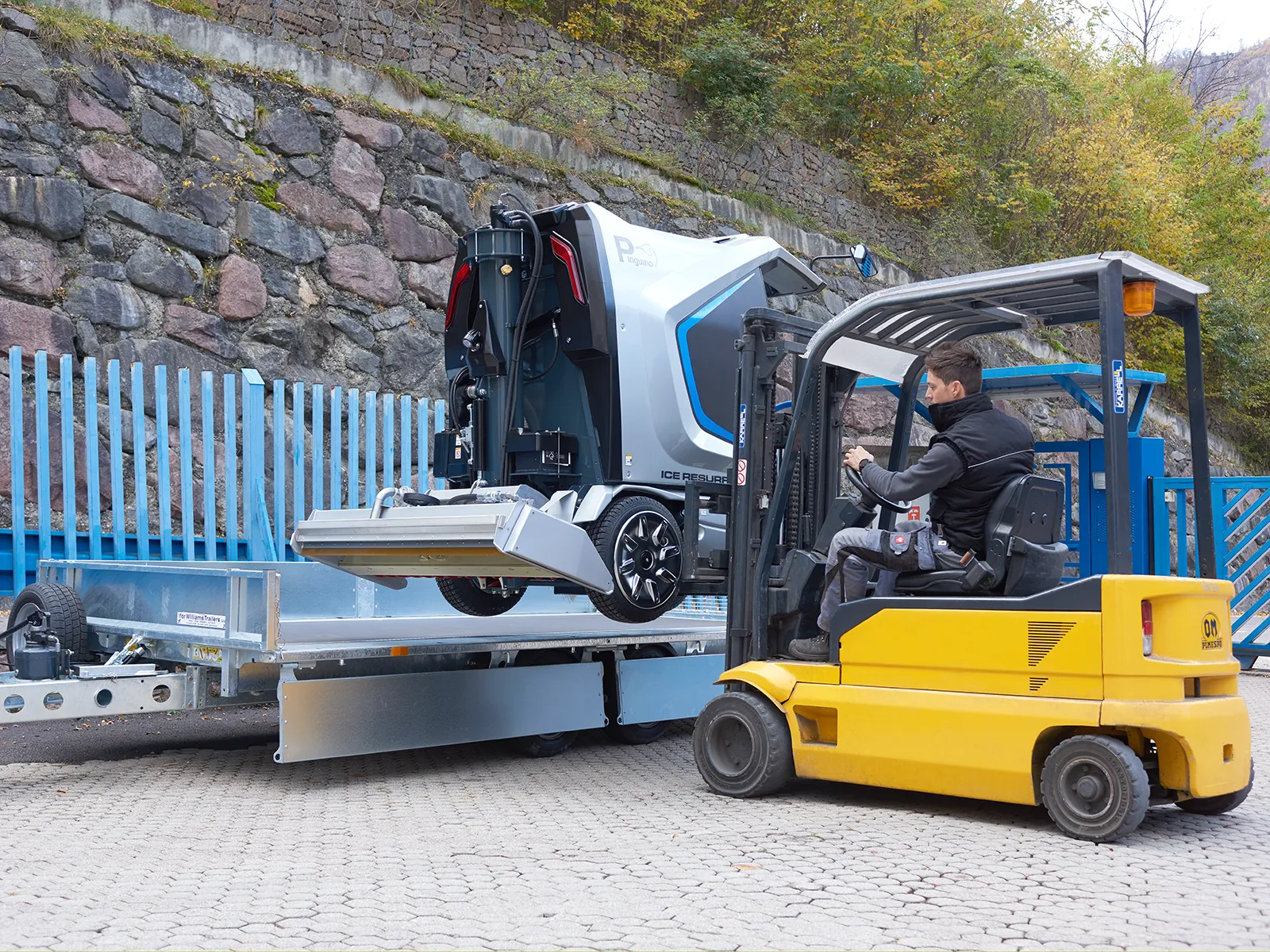

Ease of transport

On to your next event? The low-weight Pinguino is fitted with lifting pockets for ease of transportation by forklift or trailer.

Learn more

Easy handling

The Pinguino excels due to its easy handling. Its intuitive design and simple controls make it accessible to anyone, even those who have never driven anything similar.

Learn more

Man in a jacket drives a vehicle over an ice field with flags behind him.

Ease of maintenance

All machine components are easily accessible without the need to remove parts, making maintenance quick, simple, and very cost-effective, keeping operating costs to a minimum.

Learn more

Interior of a vehicle with mechanical parts and visible electric floor cleaner.

Features

Explore the Pinguino’s standard features and numerous optional extras. We are also happy to customize the Pinguino to meet your needs.

Lithium
https://www.wm-technics.com/wp-content/uploads/2024/03/pinguino-1600x1000-electric.webp
Motor

Asynchronous motor

Drive power

10 kW

Battery Lithium

BlueLi 80V – 230Ah

Charger power

3 kW

Battery charger connection

100-240 VAC / 50-60 Hz

Autonomy

Approx. 2h 40 min.

Charging time for 80%

Approx. 4h 20 min.

Weight when empty

1,230 kg (basic outfit)
2,690 lbs

Water tank

340 l
90 gal

Snow tank

1 m³ / compacted 1.25 m³
35.3 ft³ / compacted 44.2 ft³

Petrol / Gasoline
https://www.wm-technics.com/wp-content/uploads/2024/03/pinguino-1600x1000-3.webp
Engine

Honda GX690RH, 2-cylinder, 688 cm³ / 42 in³

Power

16.5 kW / 22.1 HP at 3,600 rpm

Weight when empty

1,100 kg (basic outfit)
2,425 lbs

Water tank

340 l
90 gal

Snow tank

1 m³ / compacted 1.25 m³
35.3 ft³ / compacted 44.2 ft³

Fuel tank

15 l
4 gal

Included in delivery

Asta in legno con fori per viti, 90 cm di lunghezza.

1 blade in transport sheath

Asciugamano nero piegato su sfondo bianco.

Towel felt

Due tappetini neri in gomma su sfondo bianco.

2 rubber mats

Barra metallica con due estremità a T, una nera e una argentata.

6 mm hex socket T wrench

Chiave a croce in metallo con quattro bracci, uno dritto e tre curvi.

Cross key with nut

Due guanti grigi con bordo nero su sfondo bianco.

Laceration-proof safety gloves

Blocco di spugna bianca con bordo marrone su sfondo bianco.

Grindstone

Raccordo a compressione in ottone con anello di tenuta nero.

Water connector

Cinque fusibili di colore rosso, arancione, verde, blu e bianco su sfondo bianco.

Fuse set

Clip metallica, vite e rondella su sfondo bianco.

Set ABS fastening material

Asta metallica lunga con estremità filettata, su sfondo bianco.

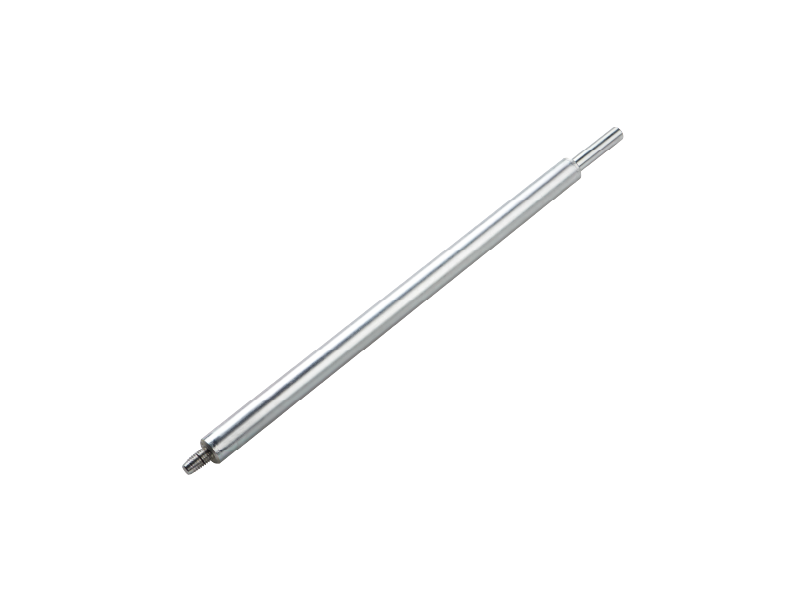

Safety and Lifting bar

Cavo di alimentazione blu con spina e filo nero su sfondo bianco.

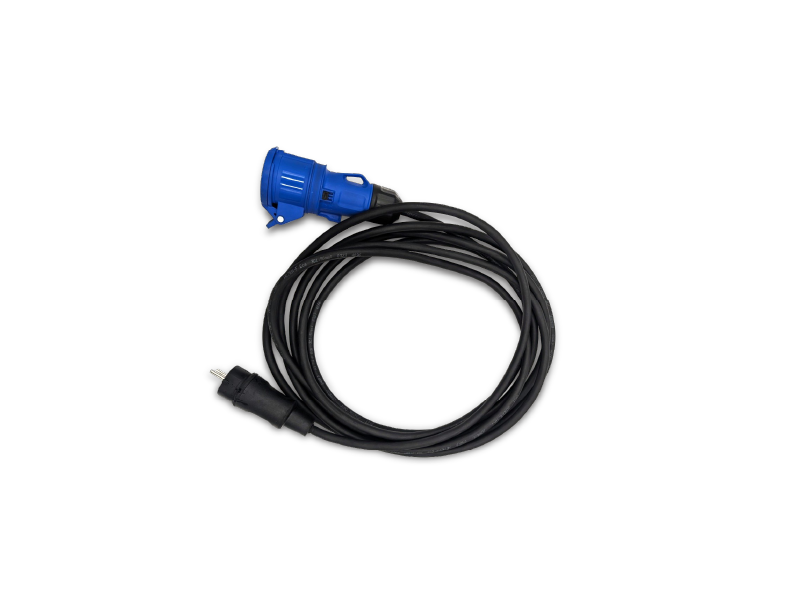

Charging Cable (Lithium)

Due manuali tecnici aperti, uno con un'immagine di un veicolo e l'altro con diagrammi.

Instruction manual

Disegno tecnico di parti di un veicolo, inclusi motore, ruote, sedile e altri componenti.

Online spare parts catalogue

Link WORKspace

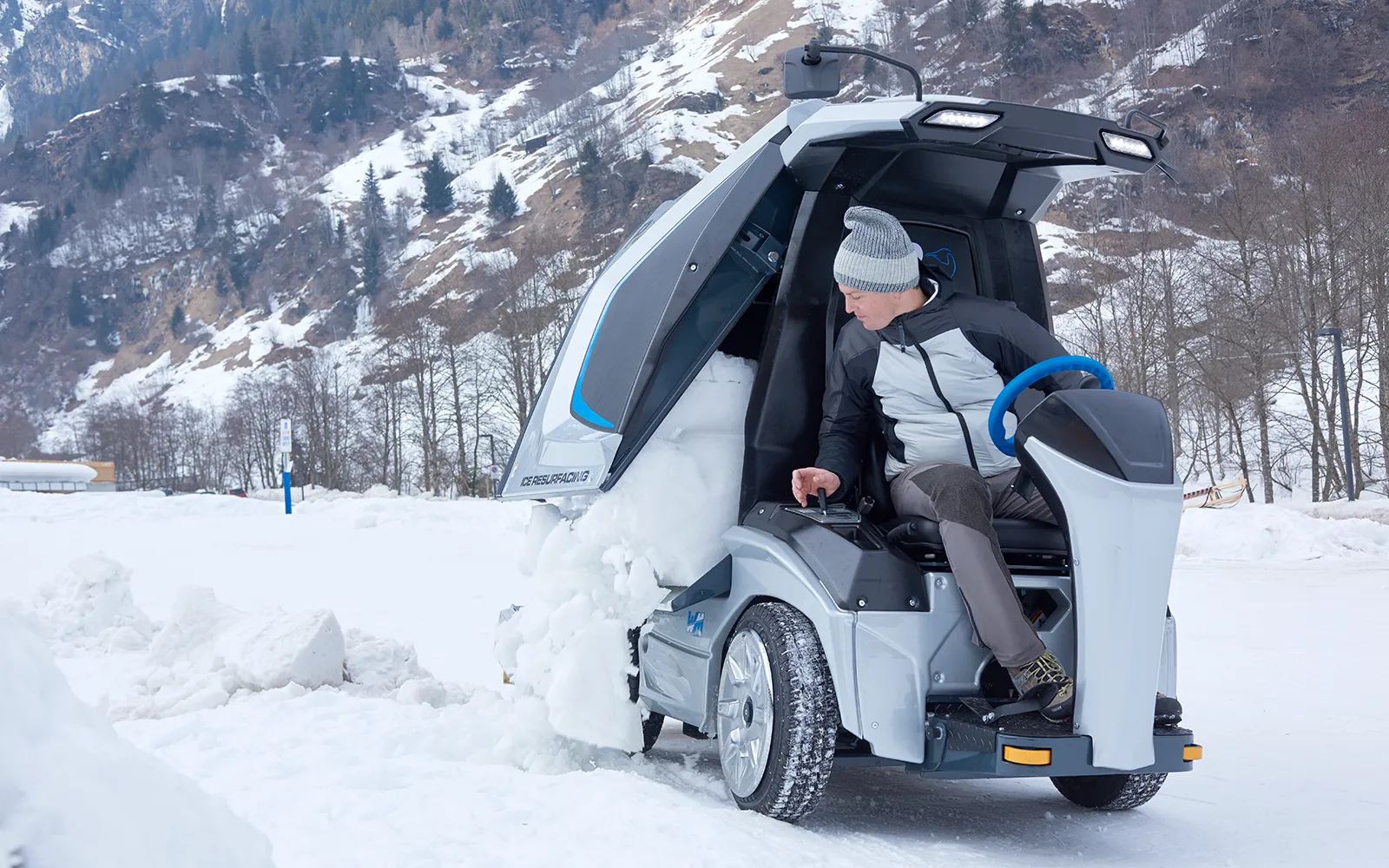

Safety and protective features

At WM technics, safety and health protection always come first. A thorough and independent inspection carried out by Suva, the accredited and recognized Swiss certification body, confirms compliance with the European Directive 2006/42/EC, which regulates the level of protection against machinery-related accidents to ensure user safety.

In compliance with Suva certification No. E 7164/2.d

Optionals

The Pinguino offers numerous configuration options: with a wide range of accessories, you can fully customize your machine to perfectly suit your specific needs.

Chiusura a vite dorata su tubo metallico blu.
Screw conveyor wash system vertical
Chiusura a chiave dorata con logo incastonata su superficie metallica grigia.
Screw conveyor wash system horizontal

Spazzola rotante per pulizia pavimenti con logo WM TECHNICS.
Brush

Specchio retrovisore con superficie riflettente e braccio regolabile, su sfondo bianco.
Side mirrors
Monitor integrato nel soffitto di un veicolo con schermo acceso.
Rear-view camera

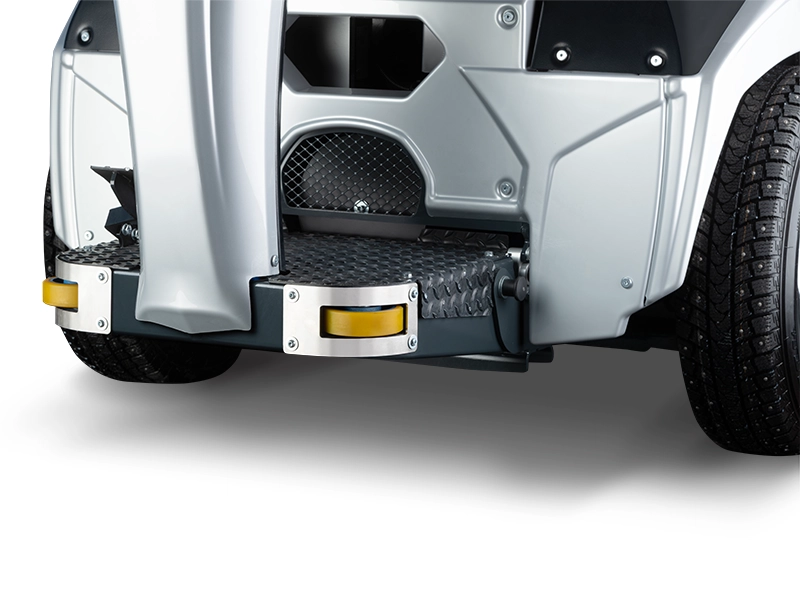

Protective guard for board guide rollers

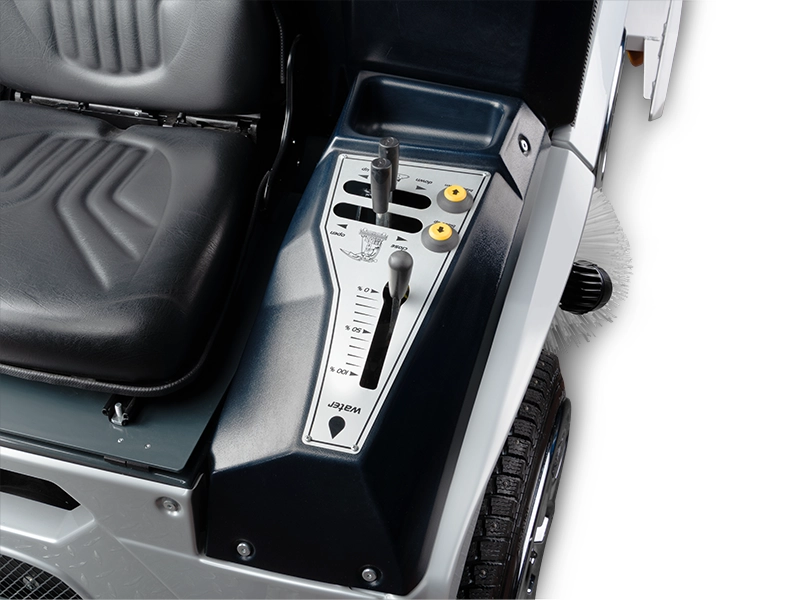

Hydraulic blade adjustment
Veicolo elettrico con tettuccio aperto, sedile e volante, ruote con cerchi in lega.
Slide extension
Pannello di controllo con indicatore livello acqua, pulsante stop e logo TREM.
Water tank signage
Icone di carburante e bullone con due pulsanti rossi sotto.
Conveyor screw overload warning system
Interruttore con timer e pulsanti, su sfondo bianco.
Acquastop valve with time relay

Luci LED per veicoli con ruota, paraurti e cablaggio.
Front and working lights (side, rear)
Luci di stop gialle su un veicolo commerciale.
Flashing warning light

Veicolo grigio per risuperficiamento del ghiaccio con logo Coca-Cola e marchio Pinguìno.
Custom wrap 4c digital print

Pneumatico invernale con cerchio argentato su sfondo bianco.
Spare tyre 12”

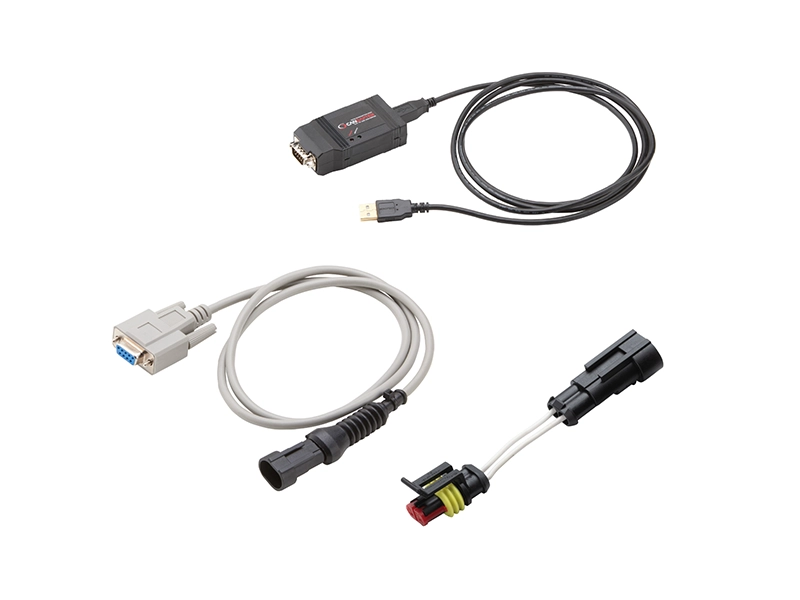

Diagnostic cable

Lama di ricambio per sega circolare con 2 fori di fissaggio.
Blade
Quattro fogli di tessuto nero ripiegati su se stessi.
Feld towel
Asciugamano nero piegato su sfondo bianco.
Terry towel

Where they choose Pinguino

Palermo On Ice Logo
Palermo On Ice

Italy

Mentor Civic Ice Arena Logo
Mentor Civic Ice Arena

United States

Puckmasters Hockey Training Logo
Puckmasters Hockey Training

United States

Ice Arena Katerinky Logo
Ice Arena Katerinky

Czech Republic

Cerogrado Logo
Cerogrado

Chile

De Tocht Logo
De Tocht

Netherlands

Essener Wintertraum Logo
Essener Wintertraum

Germany

Fabrik8 Logo
Fabrik8

Canada

Hockey Trainings Center Logo
Hockey Trainings Center

Austria

Ice Cold Entertainment Logo
Ice Cold Entertainment

United States

Magic Ice Logo
Magic Ice

United States

Outdoor Ice Rinks Logo
Outdoor Ice Rinks

United States

Pond Hockey Championship Logo
Pond Hockey Championship

Italy

Powhatan IceDen Logo
Powhatan IceDen

United States

AST Logo
AST

Austria

Rink Management Services Corporation Logo
Rink Management Services Corporation

United States

ООО “ГК ТАЙГА” Logo
ООО “ГК ТАЙГА”

Russia

Sportanlagen ag wallisellen Logo
Sportanlagen ag wallisellen

Switzerland

SEE-INFRA AG Logo
SEE-INFRA AG

Switzerland

Raphael Fink

Uomo con cappello e giacca sportiva innevato, tiene un disco da hockey.

“Agile, comfortable to use and outstanding ice resurfacing: With the Pinguino, we create the perfect ice conditions for our events!”

Raphael Fink - Ice Master
Pond Hockey Championship (Italy)

Downloads

Catalogue Pinguino

3.62 MB

SUVA type-examination certificate no. E 7164/2.d

338.46 KB
Certificato di esame su sfondo nero con testo e firme.
