Trimmer LSU
Tools

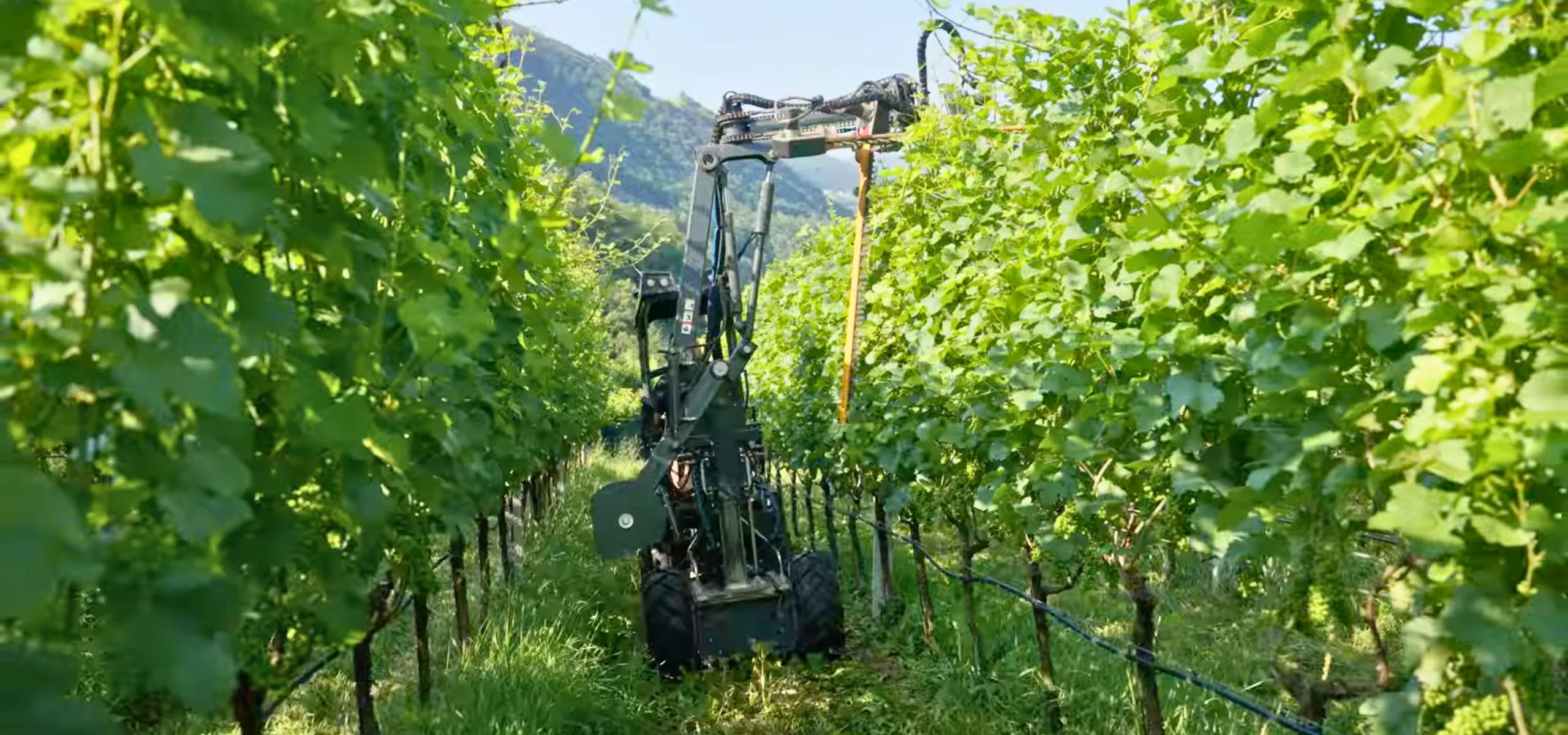

The LSU trimmer was developed for narrow spaces and steep terrain. The deep-set, hydraulic-swivel counterweight guarantees high stability in all working conditions.
Drag to view
Benefits
A wide array of hydraulic functions allows the trimmer to be adjusted according to the working conditions. It can be hydraulically raised and angled, swiveled from left to right, and smoothly regulated to the side to adapt to the distance between the rows of vines.
One notable function is that the cutting bars can be swiveled upwards by 90°, which significantly facilitates the insertion and extraction of the blades, even between rows of vines.
All functions of the trimmer are controlled via the multifunction joystick.
Technical data
min. 20 l/min at 160 bar
min. 5.5 gal/min at 160 bar
7.5 l/min at 130 bar
2 gal/min at 130 bar
900 – 1,200 mm
35.5 – 47.5 in
410 kg incl. counterweight
900 lbs incl. counterweight
