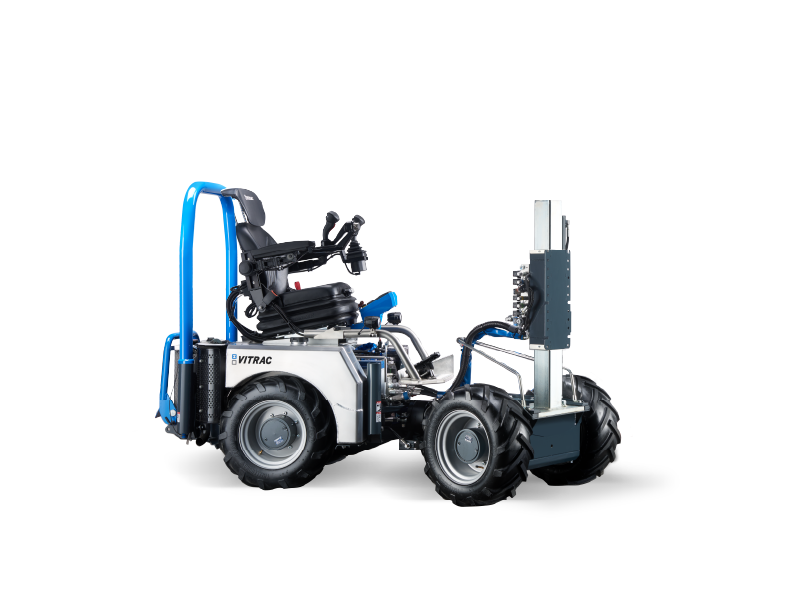

Implement mast
Tools

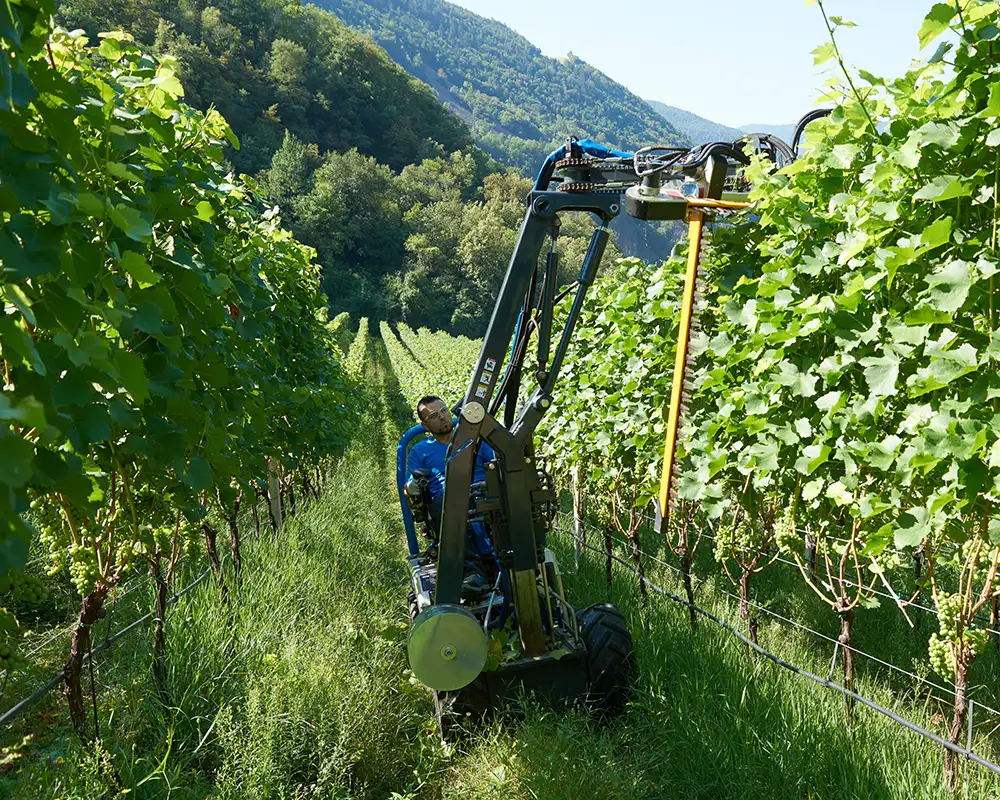

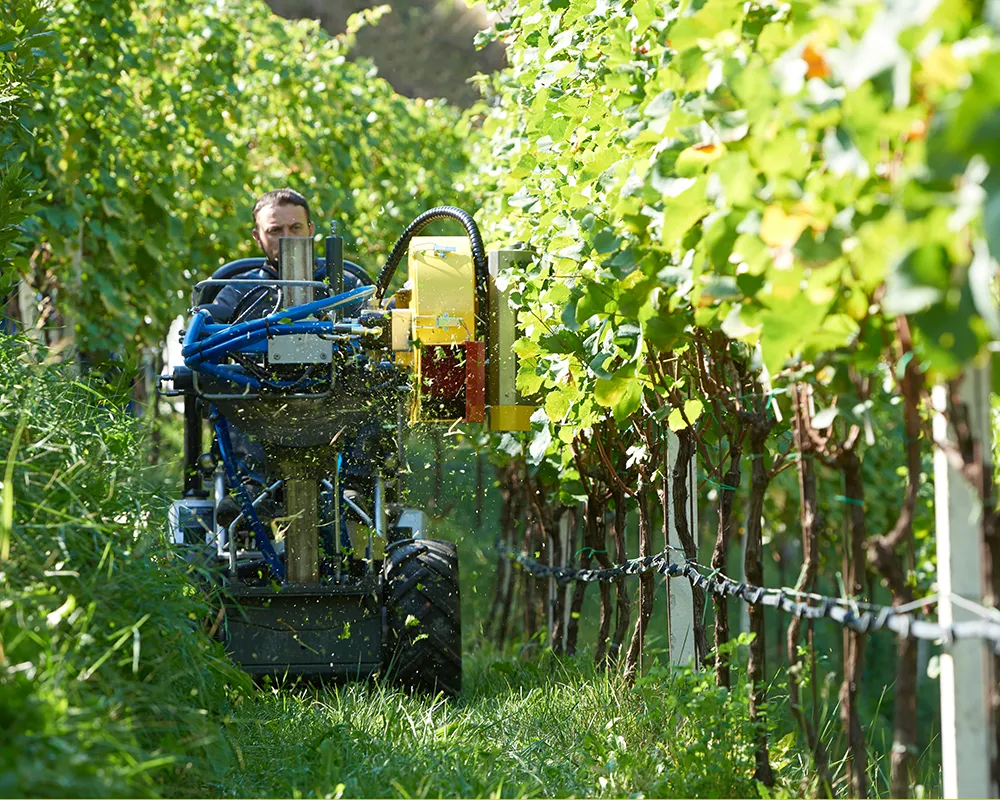

The implement mast sets new benchmarks for multifunctionality in farming. It allows you to mount various accessory units, including the flail mower or trimmer, and position them according to your needs. The implement mast takes your productivity to a new level by offering an all-in-one solution for diverse tasks.
Maximum operational versatility
Freedom of tool orientation
Optimising productivity
Configuration
Implement mast with hydraulic block unit
Swivel system with 500 mm telescope
Quick-release system for the telescope
Parking jacks

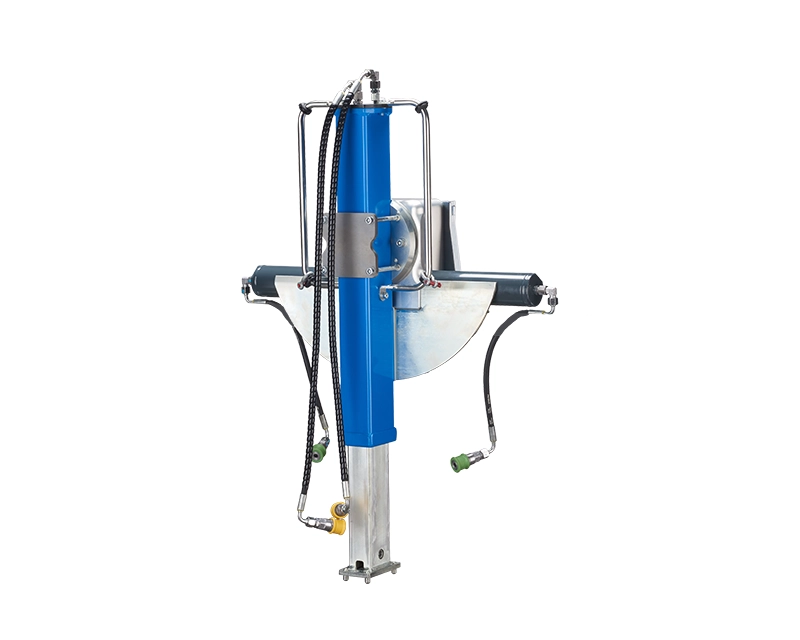

Implement mast with hydraulic block unit

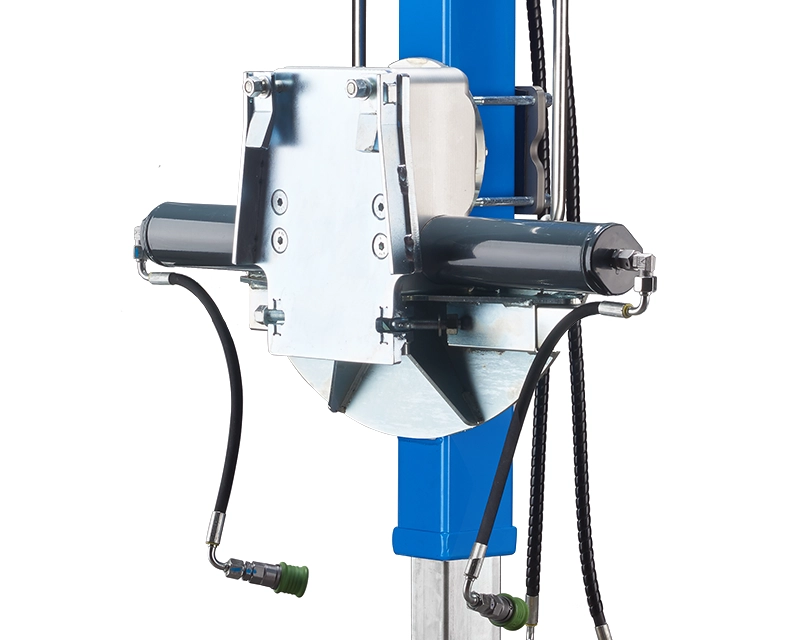

Swivel system with 500 mm telescope
Quick-release system for the telescope

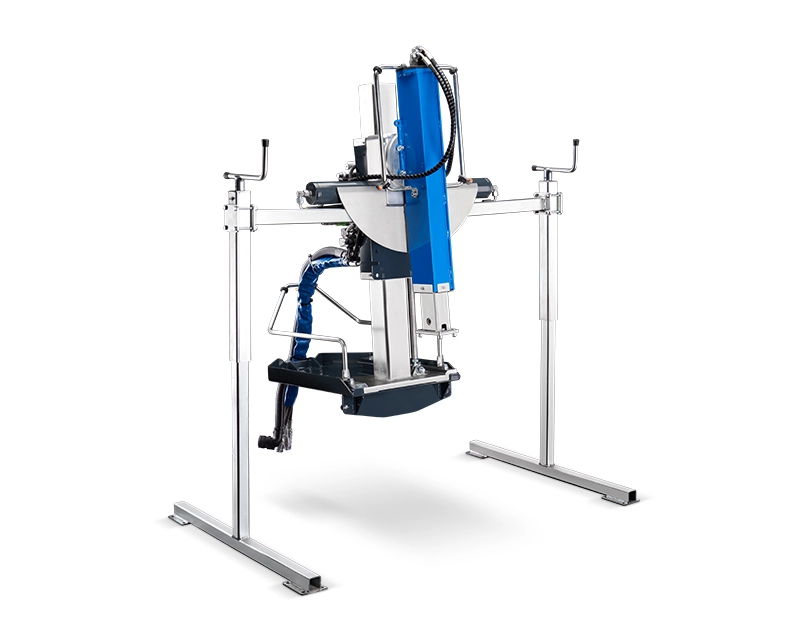

Parking jacks

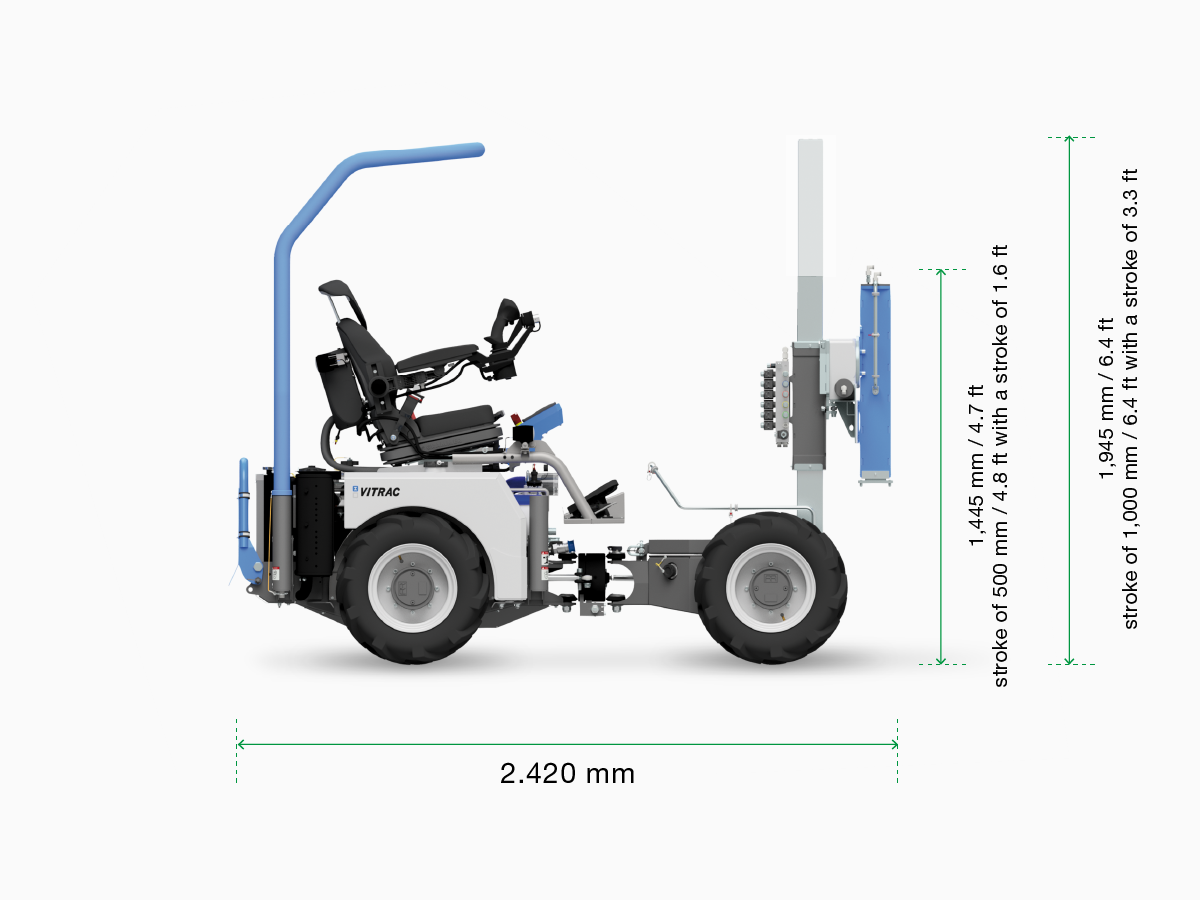

Technical data
Stroke length of the main telescope
500 mm or 1,000 mm / 1.6 ft or 3.3 ft
Tilt angle of the swivel system
± 90°
Stroke length of the 2nd telescope
500 mm / 20 in
Weight small mast
170 kg / 375 lbs
Weight high mast
190 kg / 419 lbs
